Medical LCD Screen BOE 10.1inch GV101WXM-N80 | Bestar 1

Medical LCD Screen BOE 10.1inch GV101WXM-N80 | Bestar 2

Medical LCD Screen BOE 10.1inch GV101WXM-N80 | Bestar

IPS TFT LCD Screen 1280*800 LVDS 500nits

The GV101WXM-N80 is a high-performance 10.1-inch XGA (1280×800) color TFT LCD module designed for industrial and embedded applications. Featuring amorphous silicon TFT technology, it delivers sharp 16.7-million-color displays with a vertical RGB stripe pixel arrangement and a compact 216.96×135.6mm active area

स्क्रीन का साईज़:

10.1"

उत्पत्ति का स्थान:

China, Guangdong

मॉडल संख्या:

GV101WXM-N80

संकल्प:

1280*800

प्रसव के समय:

Innerhalb von 15 Tagen

वारंटी:

1 Jahr

जांच

download

百升达供应-B8 NB Product Spec GV101WXM-N80-8GP0_0

एक समीक्षा लिखे

Introdução ao produto

A rugged 10.1-inch XGA (1280×800) display designed for industrial and embedded systems. Features 16.7M colors, LVDS interface, and edge-lit LED backlight (30,000-hour lifespan) for crisp visuals in harsh environments (-20°C to 70°C). With a slim profile (4.9mm thickness) and lightweight (150g), it integrates seamlessly into control panels, portable devices, and smart terminals.

Nome do produto	10.1” TFT Industrial/Medical LCD SCreen
Número do modelo	GV101WXM-N80
Resolução	1280(RGB)×800, WXGA, 149PPI
Área Ativa	216.96(W)×135.6(H) mm
Tamanho do contorno	228.2(W)×148.85(H)×4.9(D) mm
Luminância	500 cd/m² (Typ.)
Ângulo de visão	85/85/85/85 (Typ.)(CR≥10)
Cores de exibição	16.7M , 45% NTSC
Tempo de resposta	30 (Typ.)(Tr/Td) ms
Taxa de contraste	1300:1 (Typ.)
Temperatura de operação	-20 ~ 70 °C
Temperatura de armazenamento	-30 ~ 80 °C
Suporte à personalização	Painel de toque, cabos de tela, placa AD, placa principal, gabinete, etc.

exposição do produto

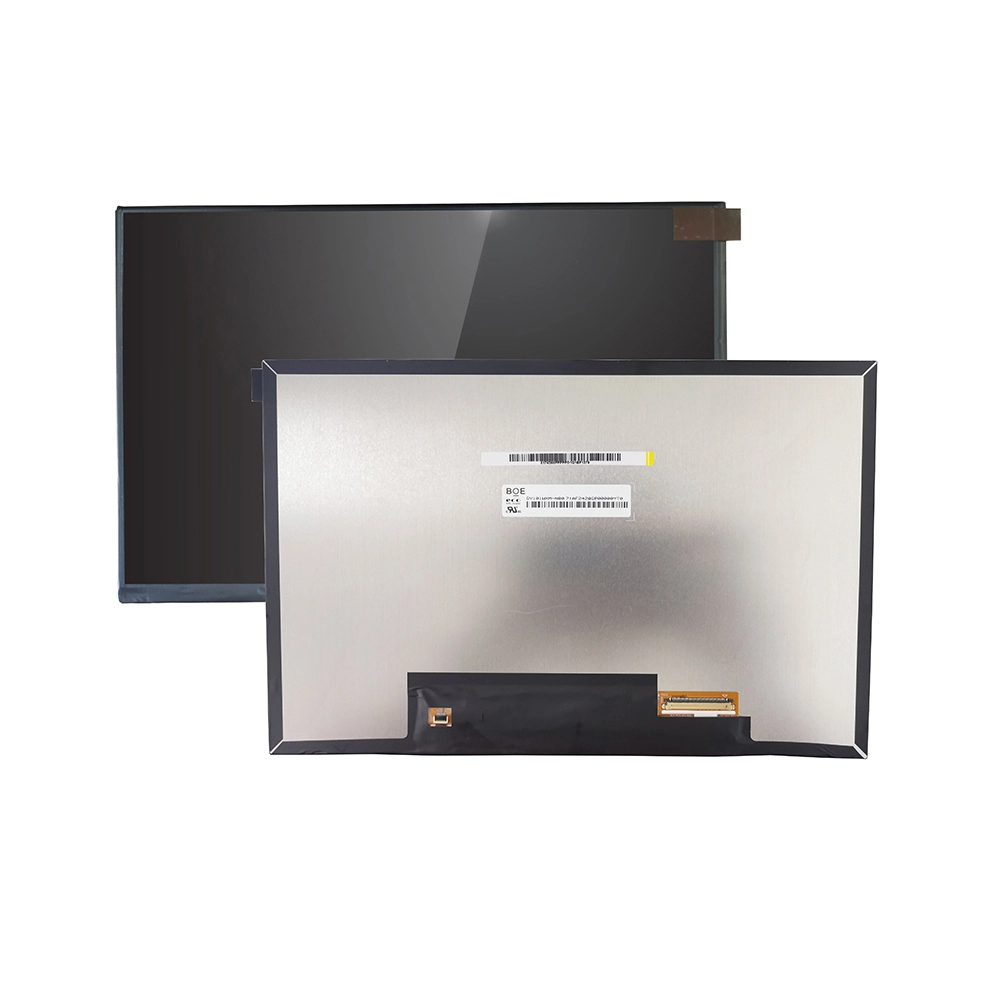

BOE GV101WXM-N80 10.1" TFT LCD

10.1-inch XGA (1280×800) industrial display with LVDS interface, 16.7M colors, and 30K-hour LED backlight. Slim (4.9mm thick, 150g), scratch-resistant surface, operates at -20°C–70°C. RoHS-compliant, low power. Ideal for rugged embedded systems and portable devices.

Medical LCD Screen BOE 10.1inch GV101WXM-N80 | Bestar 4

10.1 Inch TFT LCD

1280*800/WXGA

GV101WXM-N80

LVDS 40PINS

Medical Application

Bestar Hot Sale LCD

Medical LCD Screen BOE 10.1inch GV101WXM-N80 | Bestar 7

DISPLAY TOUCH PANEL KIT

Suporte à personalização

faq for BOE GV101WXM-N80 10.1" TFT LCD

What environmental conditions can this module withstand?

t operates reliably in -20°C to +70°C temperatures and 10–90% RH humidity. The 3H-hardened surface resists scratches and glare, making it ideal for industrial and outdoor applications.

How long does the LED backlight last?

The edge-lit LED backlight has a 30,000-hour lifespan (L50) under normal use. No maintenance is required during its operational lifetime.

What interfaces does it support?

It uses an LVDS interface for high-speed data transmission. Power requirements: 3.3V for LCD logic (420mA max) and 12V for backlight (300mA max).

Quais produtos podemos fornecer?

Podemos fornecer tela LCD, painel de toque, cabos de tela, placa AD, placa-mãe e monitor personalizado. Também oferecemos suporte ao serviço ODM/OEM. Podemos personalizar o comprimento do cabo da tela, o tamanho do contorno do painel de toque e a função da placa AD de acordo com seu cenário de uso.

Quando vocês podem entregar as mercadorias?

Este é um produto de uso médico e geralmente pode ser entregue em até 15 dias (dependendo da quantidade do pedido).
