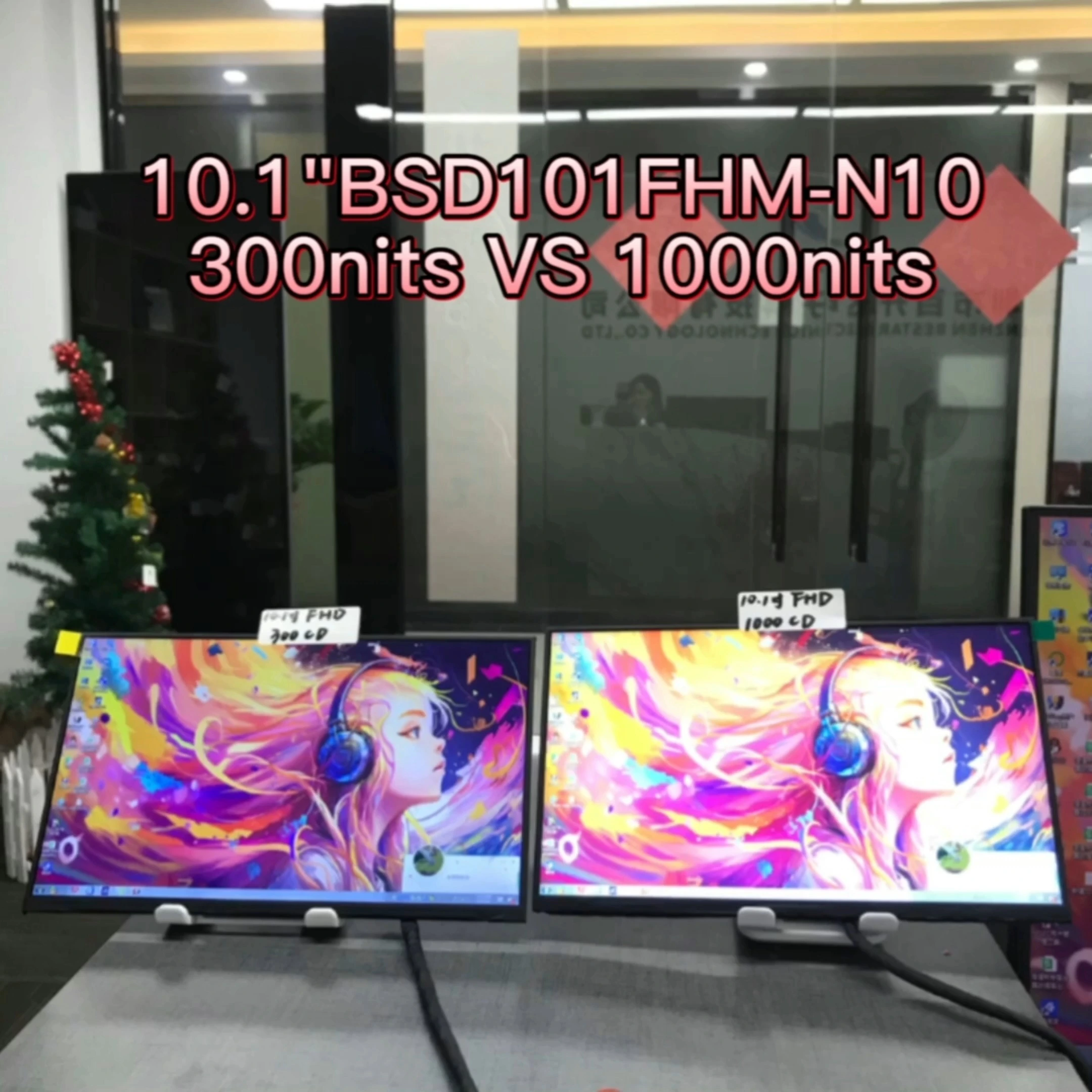

10.1-inch FHD IPS TFT LCD Screen BSD101FHM-N10-500CD FHD 1920x1080
The BSD101FHM-N10-500CD is a 10.1-inch TFT LCD module that utilizes an IPS panel for superior image quality, offering a Full HD resolution of 1920x1080 pixels and 16.7 million colors for vibrant and sharp visuals. With a typical brightness of 500 cd/m² and a high contrast ratio of 1000:1, it ensures excellent visibility in various lighting conditions. This module features an LVDS interface for reliable data transmission, a white LED backlight for consistent illumination, and a fast response time of 25ms typical. It operates within a wide temperature range of -20°C to +60°C, making it durable for demanding environments. Key advantages include full viewing angles, compact dimensions (229.90mm x 135.50mm x 2.6mm), and compliance with reliability standards, ideal for applications requiring high-definition displays with robust performance. This product combines advanced technology with energy efficiency, providing a cost-effective solution for enhanced visual experiences.
5.0
Screen size:
10.1 inch
Place of origin:
Guangdong, China
Model number:
BSD101FHM-N10-500CD
Resolution:
1920*1080, FHD
Delivery time:
with 15 days
Warranty:
12 months
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Product Brief
10.1" FHD 1920*1280 Display Panel
The BSD101FHM-N10-500CD is a compact 10.1-inch IPS TFT LCD display module designed for high-definition applications. It delivers 1920x1080 resolution with 16.7M colors, supported by an LVDS interface and a typical brightness of 500 cd/m². Its wide operating temperature range and reliable construction make it suitable for industrial and embedded systems, ensuring clear and stable performance in diverse conditions.
Related Parameters
| Parameter | Specification |
| Model No. | BSD101FHM-N10-500CD |
| Panel Size | 10.1 inch |
| Resolution | 1920xRGBx1080 pixels |
| Active Area | 125.712(H)x223.488(V) mm |
| Outline Dimension | 229.91(W)x135.74(H)x2.8(D) mm |
| Number of Colors | 16.7M |
| Display Mode | Transmission mode, normally black |
| Viewing Direction | Full viewing |
| Interface | LVDS |
| Backlight | White LED (45 LEDs total) |
| Typical Luminance (Center) | 400-500 cd/m² |
| Contrast Ratio (Typ.) | 1000 |
| Response Time (Typ.) | 25 ms (Rising + Falling) |
| Operation Temperature | -20°C ~ +70°C |
| Storage Temperature | -30°C ~ +80°C |
| LED Life-Time | 30000 Hours |
| Power Supply Voltage | 3.0~3.6V (Typ. 3.3V) |
| Surface Treatment | HC, AG |
Why Choose This Display?
Upgrade to the BSD101FHM-N10-500CD 10.1-inch Full HD IPS display—crisp visuals, wide temperature range, and reliable LVDS interface for industrial excellence.
Abundant Stock, No Supply Worries
We maintain large inventory levels, ensuring stable supply with zero risk of discontinuation.
Authorized Distributor, Factory Pricing
As an authorized primary agent, we offer you the most competitive prices straight from the source factory.
Fully Customizable Display Touch Solutions
Tailor brightness levels, touchscreen aesthetics, and driver board functionality to perfectly match your requirements.
12-Month Warranty + Lifetime Support
Enjoy a 12-month warranty plus lifetime online technical assistance—your peace of mind is our priority.
Application Scenario
Industrial control panels
Navigation equipment
Vehicle-mounted displays
Home appliances
Outdoor monitoring devices
Home appliances
Frequently Asked Questions
1
What is the resolution of the BSD101FHM-N10-500CD display?
The resolution is 1920x1080 pixels (Full HD), supporting 16.7 million colors for detailed imagery.
2
What is the operating temperature range?
It operates from -20°C to +60°C, ensuring performance in varied environments.
3
What interface does this module use?
It uses an LVDS interface for efficient data transmission.
4
What is the typical brightness and response time?
The typical brightness is 500 cd/m², and the response time is 25 ms.
5
What are the storage conditions?
Store at -30°C to +70°C, in a dark place with humidity below 50±20% RH, away from solvents and shocks.
