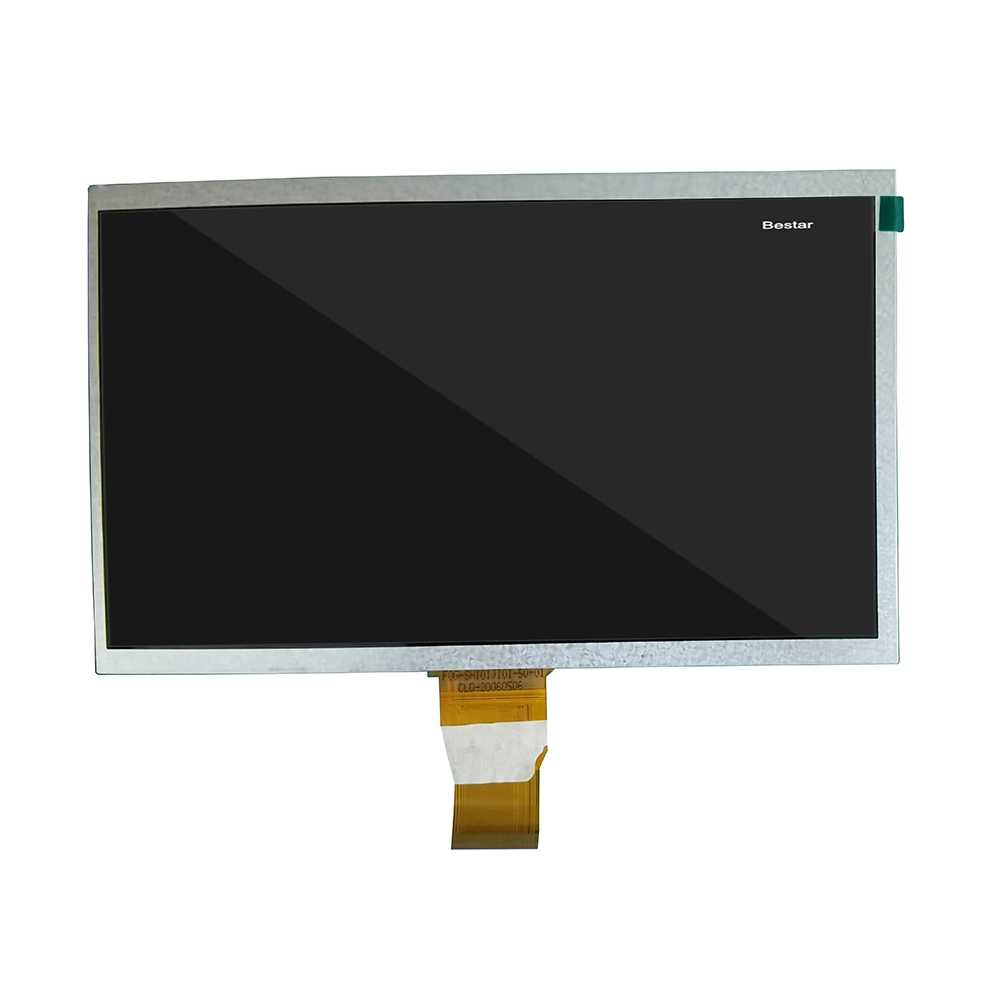

10.1 inch IPS TFT LCD Screen 1024*600 LVDS Display Panel

The BSD-A101EH6-42E​ is a 10.1-inch color TFT LCD module designed for industrial applications. With a WVGA resolution of 1024×600 pixels (RGB vertical stripe), it delivers vibrant 16.7 million colors and a brightness of 450–500 nits, ensuring clear visibility even in well-lit environments. The LED side-light backlight ensures uniform illumination and a long lifespan of up to 20,000 hours. Operating within a wide temperature range (-20°C to 70°C) and humidity conditions, it features anti-glare surface treatment and RoHS compliance for enhanced durability. The module supports LVDS interfaces and includes robust ESD protection, making it ideal for rugged environments. Its compact design (235×143×5 mm) and lightweight (300–320 g) make it suitable for mobile devices, digital photo frames, and AV terminals. Engineered for reliability, it undergoes rigorous tests for temperature, vibration, and shock resistance, ensuring consistent performance across diverse applications.
