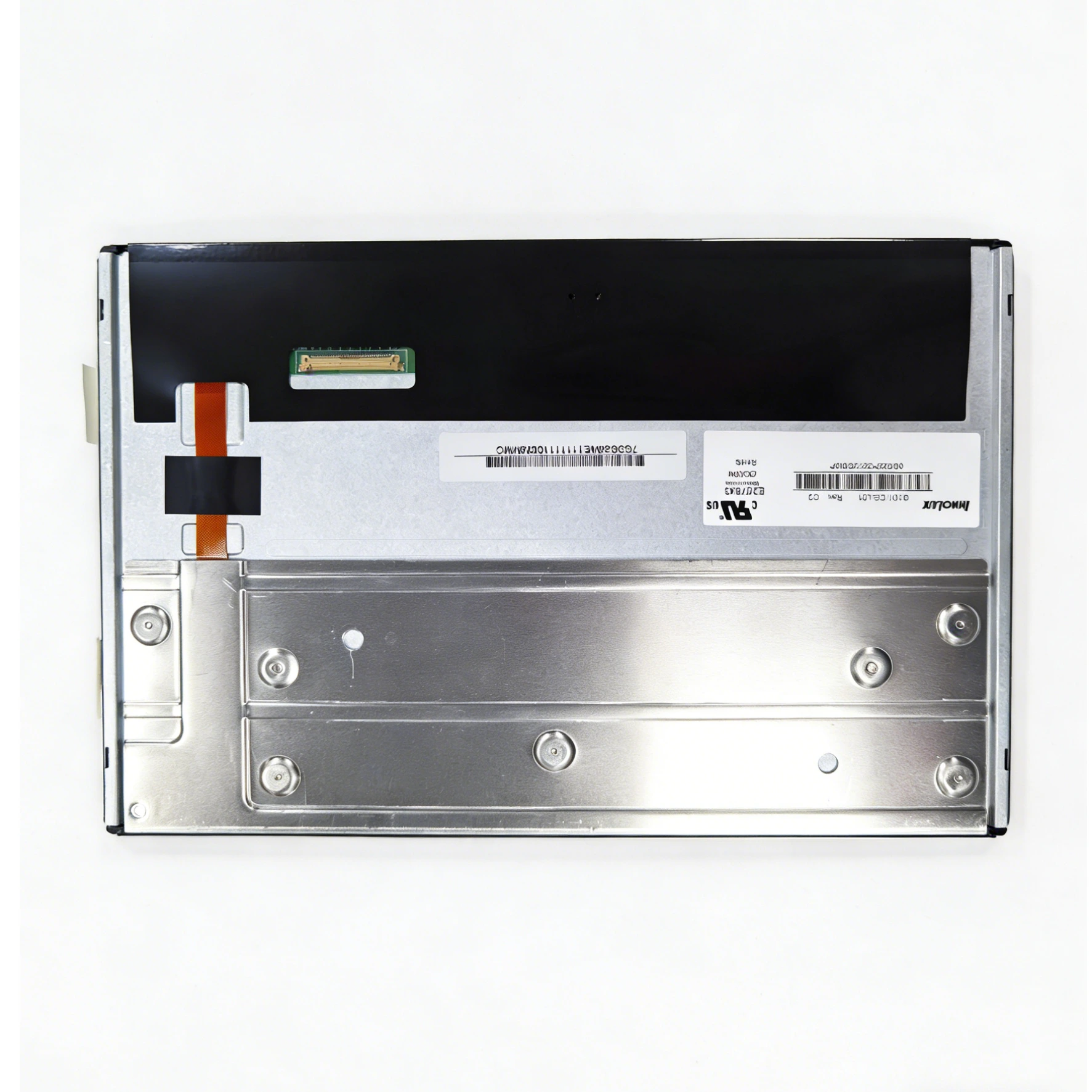

10.1-inch TFT LCD Module 1280*800 G101ICE-L01/G101ICE-LH1 Industrial Use
LVDS 45PINS Interface WUXGA Display Screen Panel
The G101ICE-LH1 is a 10.1-inch TFT LCD module from INNOLUX, designed for high-performance displays. It features a WXGA resolution of 1280 x 800 pixels, supporting up to 16.7 million colors with LED backlighting for vibrant visuals. The module offers a typical luminance of 500 nits, a contrast ratio of 800:1, and fast response times (13ms rise, 12ms fall) for sharp image quality. With a 30-pin LVDS interface and DE-only mode, it ensures reliable data transmission. Key advantages include a wide operating temperature range (-30°C to +80°C), RoHS compliance, and an LED backlight lifespan of 50,000 hours. Its low power consumption (6.0W typical) and anti-glare surface make it ideal for demanding environments, providing durability and clarity for industrial and entertainment applications. This module combines high brightness, color accuracy, and longevity to support efficient decision-making in various setups.
5.0
Screen size:
10.1"
Place of origin:
Shenzhen, China
Model number:
G101ICE-LH1
Resolution:
1280*800，HD
Delivery time:
Within 15 days
Warranty:
12 Months
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Product About TFT LCD
10.1" 1280*800 Display Panel
The INNOLUX G101ICE-LH1 is a compact 10.1-inch TFT LCD module with a 1280 x 800 WXGA resolution. It delivers 16.7 million colors through an LVDS interface and LED backlight, ensuring bright, clear displays. Designed for robustness, it operates in temperatures from -30°C to +80°C and features low power consumption. Ideal for monitors and industrial use, it offers reliable performance with a long-lasting backlight.
Related Parameters
| Parameter | Value |
|---|---|
| Model | G101ICE-LH1 |
| Screen Size | 10.1 inches |
| Resolution | 1280 x 800 (WXGA) |
| Display Colors | 16.7M / 262K |
| Luminance (Typ.) | 500 nits |
| Contrast Ratio (Typ.) | 800:1 |
| Response Time (Typ.) | 13ms (rise), 12ms (fall) |
| Operating Temperature | -30°C to +80°C |
| LED Life | 50,000 hours |
| Power Consumption (Typ.) | 6.0 W |
| Interface | 30-pin LVDS |
Why Choose This Display?
Unleash vivid clarity with the G101ICE-LH1 10.1-inch LCD—high brightness, wide temperature range, and long life for industrial and entertainment excellence.
Abundant Stock, No Supply Worries
We maintain large inventory levels, ensuring stable supply with zero risk of discontinuation.
Authorized Distributor, Factory Pricing
As an authorized primary agent, we offer you the most competitive prices straight from the source factory.
Fully Customizable Display Touch Solutions
Tailor brightness levels, touchscreen aesthetics, and driver board functionality to perfectly match your requirements.
12-Month Warranty + Lifetime Support
Enjoy a 12-month warranty plus lifetime online technical assistance—your peace of mind is our priority.
Application Scenario
Industrial Automation
Control panels, machinery interfaces, and monitoring systems in industrial settings, engineered for temperature resilience (-10°C to +55°C) and vibration/shock resistance.
Medical Devices
Patient monitors, diagnostic equipment, and laboratory instruments, benefiting from high contrast (1000:1), anti-glare coatings, and compliance with hygiene standards.
Retail & POS Systems
Point-of-sale terminals, self-checkout kiosks, and digital signage in stores, restaurants, or hotels, supported by 16.7M colors and 50,000-hour LED backlight lifespan.
Transportation
Airports, train stations, and automotive displays, engineered for stable operation in fluctuating temperatures and humidity (10–90% RH).
Outdoor/Government Applications
Ticketing machines, information displays, and control centers, thanks to IP65-rated dust resistance and RoHS/Halogen-free compliance.
Education & Public Spaces
Interactive whiteboards, digital classrooms, and museums, leveraging its scratch-resistant 3H polarizer and wide viewing angles (85° horizontal/vertical).
Frequently Asked Questions
1
What is the typical lifespan of the LED backlight?
The LED backlight has a lifespan of 50,000 hours under typical conditions (Ta=25°C, duty 100%).
2
What is the operating temperature range for this module?
It can operate from -30°C to +80°C, ensuring performance in harsh environments.
3
What interface does the module use for connectivity?
It uses a 30-pin LVDS interface with DE-only mode for efficient data transmission.
4
Is this module RoHS compliant?
Yes, it is RoHS compliant, meeting environmental standards.
5
What is the typical power consumption?
The module consumes 6.0W typically, with details provided in the electrical characteristics.
6
Can it display full color range?
Yes, it supports up to 16.7 million colors for vibrant and accurate visuals.
