BESTAR can provide OEM&ODM services for all kinds of display touch screen SKD kits

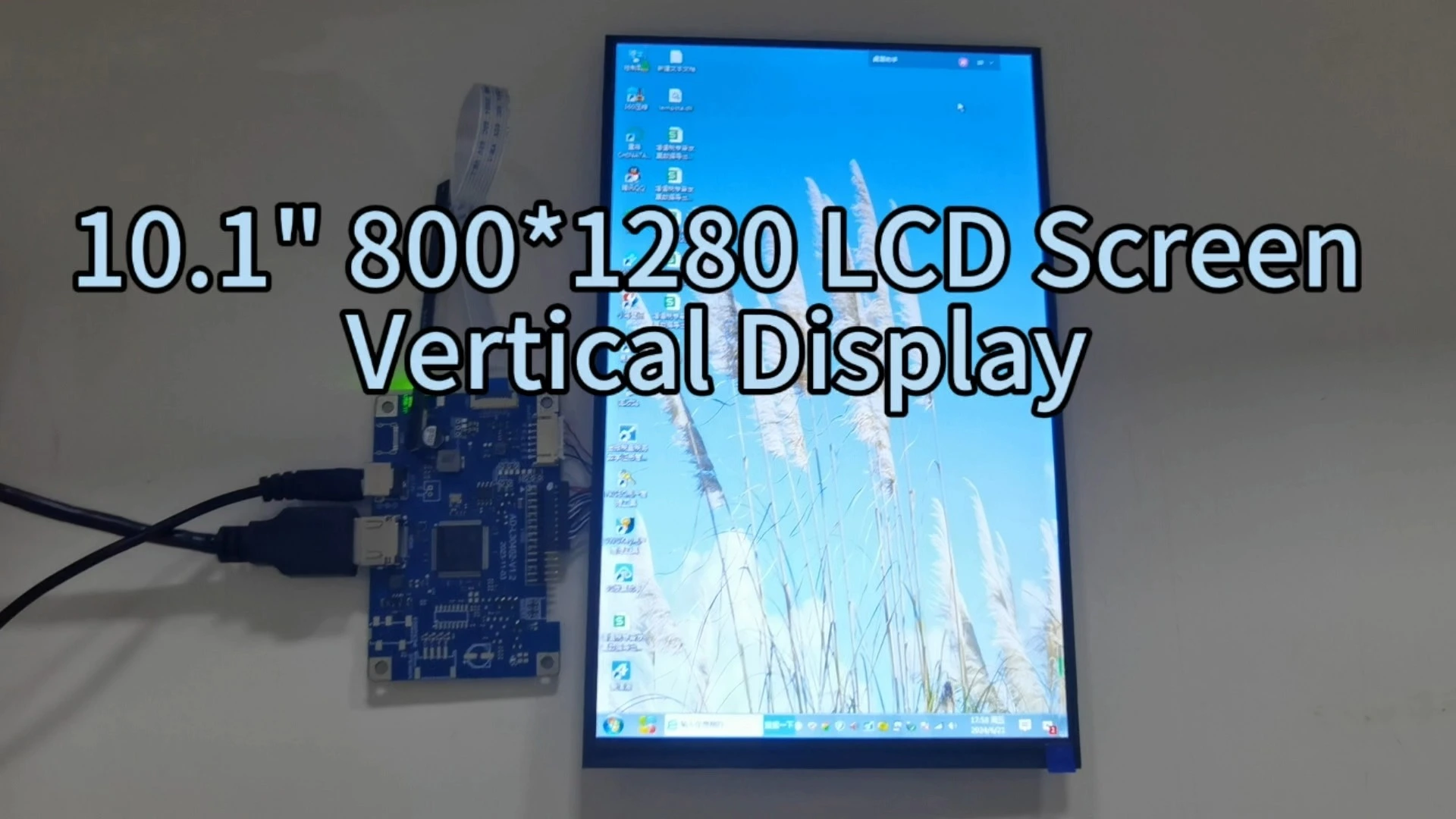

10.1-inch TFT LCD Module 800*1280 LVDS Interface Vertical Display Panel 1

10.1-inch TFT LCD Module 800*1280 LVDS Interface Vertical Display Panel 2

10.1-inch TFT LCD Module 800*1280 LVDS Interface Vertical Display Panel 3

10.1-inch TFT LCD Module 800*1280 LVDS Interface Vertical Display Panel 4

10.1-inch TFT LCD Module 800*1280 LVDS Interface Vertical Display Panel 5

10.1-inch TFT LCD Module 800*1280 LVDS Interface Vertical Display Panel

The BSD101R1120H02 is a 10.1-inch IPS TFT-LCD module featuring a resolution of 800×3(RGB)×1280 pixels and 16.7 million colors, ideal for high-visibility applications. With an ultra-wide viewing angle (80° in all directions), it ensures consistent image quality from any perspective. Powered by a white LED backlight, it achieves a brightness of 350 cd/m² and supports LVDS interface for seamless connectivity. The IPS display technology guarantees excellent color reproduction and stable performance under varying temperatures (0–50°C). Its durable design, anti-glare coating, and 3H hardness protect against scratches and reflections. Engineered for reliability, this LCD module is optimized for industrial, medical, and consumer electronics requiring long-term stability and vibrant visuals.

Screen size:

10.1"

Place of origin:

Shenzhen, China

Model number:

BSD101R1120H02

Resolution:

800*1280

Delivery time:

Within 15 days

Warranty:

12 Months

Inquiry

download

BSD101R1120H02-L-800x1280 LVDS 20P 500CD

Write a Review

Product About TFT LCD

10.1" 1280*800 Display Panel

The BSD101R1120H02 is a high-performance 10.1-inch IPS LCD module with a 16.7M-color IPS display and 800×3(RGB)×1280 resolution. Its ultra-wide viewing angles (80°) and 350 cd/m² brightness ensure exceptional clarity and readability. Equipped with a robust white LED backlight and LVDS interface, it delivers sharp images while consuming minimal power. Designed for reliability, it operates reliably across 0–50°C and resists scratches with its anti-glare coating. Ideal for industrial, medical, and commercial displays, this module combines advanced technology with durability for versatile applications.

Related Parameters

Parameter	Value	Unit
Model	BSD101R1120H02	-
Screen Size	10.1 inches	inches
Resolution	800×3(RGB)×1280	pixels
Pixel Pitch	0.1692×0.1692	mm
Display Mode	IPS with Normally Black	-
Brightness	350	cd/m²
Contrast Ratio	600:1	-
Viewing Angle (CR≥10)	80° (Left/Right/Up/Down)	degrees
Operating Temperature	0–50	°C
Storage Temperature	-20–60	°C
Interface	LVDS	-
Backlight Type	White LED	-
Power Consumption (Typ.)	1.5W	W

Why Choose This Display?

Discover crystal-clear visuals with the BSD101R1120H02 10.1” IPS LCD – 16.7M colors, ultra-wide 80° viewing angles, and energy-efficient LED backlight. Perfect for demanding displays!

10.1-inch TFT LCD Module 800*1280 LVDS Interface Vertical Display Panel 7

Rugged Design

Survives harsh environments and frequent use.

10.1-inch TFT LCD Module 800*1280 LVDS Interface Vertical Display Panel 8

Energy Efficiency

LED backlight reduces power consumption.

Customizable

Supports portrait rotation (90°) and dynamic content updates.

OptionalAC&DCTypeIISPD&SPDfailurealarm-282

Global Certifications

Supports portrait rotation (90°) and dynamic content updates.

Application Scenario

Industrial Automation

Control panels, machinery interfaces, and monitoring systems in industrial settings, engineered for temperature resilience (-10°C to +55°C) and vibration/shock resistance.

Medical Devices

Patient monitors, diagnostic equipment, and laboratory instruments, benefiting from high contrast (1000:1), anti-glare coatings, and compliance with hygiene standards.

Retail & POS Systems

Point-of-sale terminals, self-checkout kiosks, and digital signage in stores, restaurants, or hotels, supported by 16.7M colors and 50,000-hour LED backlight lifespan.

Transportation

Airports, train stations, and automotive displays, engineered for stable operation in fluctuating temperatures and humidity (10–90% RH).

Outdoor/Government Applications

Ticketing machines, information displays, and control centers, thanks to IP65-rated dust resistance and RoHS/Halogen-free compliance.

Education & Public Spaces

Interactive whiteboards, digital classrooms, and museums, leveraging its scratch-resistant 3H polarizer and wide viewing angles (85° horizontal/vertical).

Frequently Asked Questions

What is the viewing angle of the BSD101R1120H02?

It offers 80° viewing angles horizontally and vertically, ensuring clear visibility from all directions.

Does it support adjustable brightness?

Yes, brightness can be controlled via the PWM input (0.7V–1.4V DC).

What is the typical response time?

The response time is 30 ms (TON+TOFF) for black-to-white transitions.

What is the operating temperature range?

It operates reliably between 0°C and 50°C.

Is the LCD compatible with LVDS interfaces?

Yes, it features an LVDS input interface for easy integration.

What is the warranty period?

The module comes with a 12-month warranty under normal storage and usage conditions.
