BESTAR can provide OEM&ODM services for all kinds of display touch screen SKD kits

15.6 Inch TFT LCD Screen MG1561B01-6 FHD 1920*1080 1

15.6 Inch TFT LCD Screen MG1561B01-6 FHD 1920*1080 2

15.6 Inch TFT LCD Screen MG1561B01-6 FHD 1920*1080 3

15.6 Inch TFT LCD Screen MG1561B01-6 FHD 1920*1080 4

15.6 Inch TFT LCD Screen MG1561B01-6 FHD 1920*1080

CSOT Notebook LCD Display 15.6"

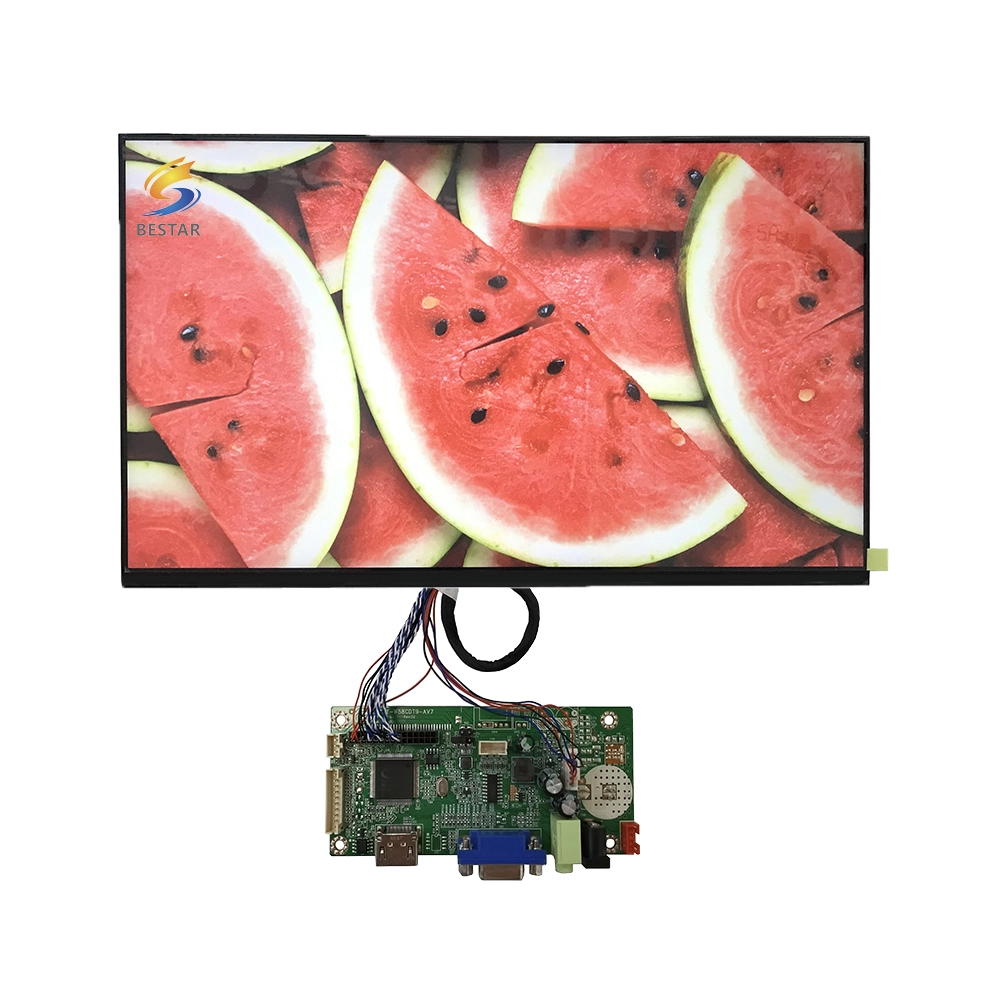

Model MG1561B01-6 is a 15.6" FHD LCD module with 1920×1080 resolution, 16.7M colors, and 250cd/m² typical brightness. Boasting 3000:1 high contrast, 178° ultra-wide viewing angle, and E-LED backlight (15,000-hour lifespan), it features LVDS interface and RoHS compliance. Ideal for monitors, it offers anti-glare hard coating (3H) and reliable performance.

Screen size:

15.6 inch

Place of origin:

China

Model number:

MG1561B01-6_Replacement model

Resolution:

1920*1080,FHD

Delivery time:

with 15 days

Warranty:

12 months

Inquiry

download

MG1561B01-6__V2 (2)

Write a Review

Product Brief

15.6" FHD 1920*1080 Display Panel

Designed for monitor applications, the 15.6" MG1561B01-6 adopts VA transmissive mode. With FHD clarity, high color saturation, and low power consumption, it supports DE mode and stable operation in 0-50℃. Its compact design and robust specs deliver consistent visual experiences.

Related Parameters

Parameter	Specification
Model	MG1561B01-6
Size	15.6" (Diagonal)
Resolution	1920 × 1080 (FHD)
Display Colors	16.7M (8bit)
Typical Brightness	250 cd/m²
Contrast Ratio (Typ.)	3000:1
Viewing Angle (CR≥10)	178°(H)/178°(V)
Backlight Type	E-LED
LED Lifetime (Typ.)	15,000 Hours
Interface	2ch-LVDS
Compliance	RoHS
Surface Treatment	Anti-glare (Haze 25%), Hard Coating (3H)
Operating Temperature	0℃ ~ 50℃

Why Choose This Display?

MG1561B01-6: 15.6" FHD LCD for monitors—3000:1 contrast, 178° wide view, vivid colors, and durable E-LED. Performance meets reliability!

15.6 Inch TFT LCD Screen MG1561B01-6 FHD 1920*1080 6

Abundant Stock, No Supply Worries

We maintain large inventory levels, ensuring stable supply with zero risk of discontinuation.

15.6 Inch TFT LCD Screen MG1561B01-6 FHD 1920*1080 7

Authorized Distributor, Factory Pricing

As an authorized primary agent, we offer you the most competitive prices straight from the source factory.

Fully Customizable Display Touch Solutions

Tailor brightness levels, touchscreen aesthetics, and driver board functionality to perfectly match your requirements.

OptionalAC&DCTypeIISPD&SPDfailurealarm-282

12-Month Warranty + Lifetime Support

Enjoy a 12-month warranty plus lifetime online technical assistance—your peace of mind is our priority.

Frequently Asked Questions

What is the resolution of MG1561B01-6?

It supports FHD resolution (1920 × 1080 pixels).

How many colors can the module display?

Up to 16.7 million colors (8bit color depth).

What is the viewing angle range?

178° horizontally and 178° vertically (contrast ratio ≥10).

What is the typical lifespan of the LED backlight?

15,000 hours (at 25mA current and 25℃ room temperature).

Is the product RoHS-compliant?

Yes, the CSOT open cell complies with RoHS standards.

What is the recommended operating voltage?

The typical power supply voltage (VCC) is 12V (range: 10.8V ~ 13.2V).
