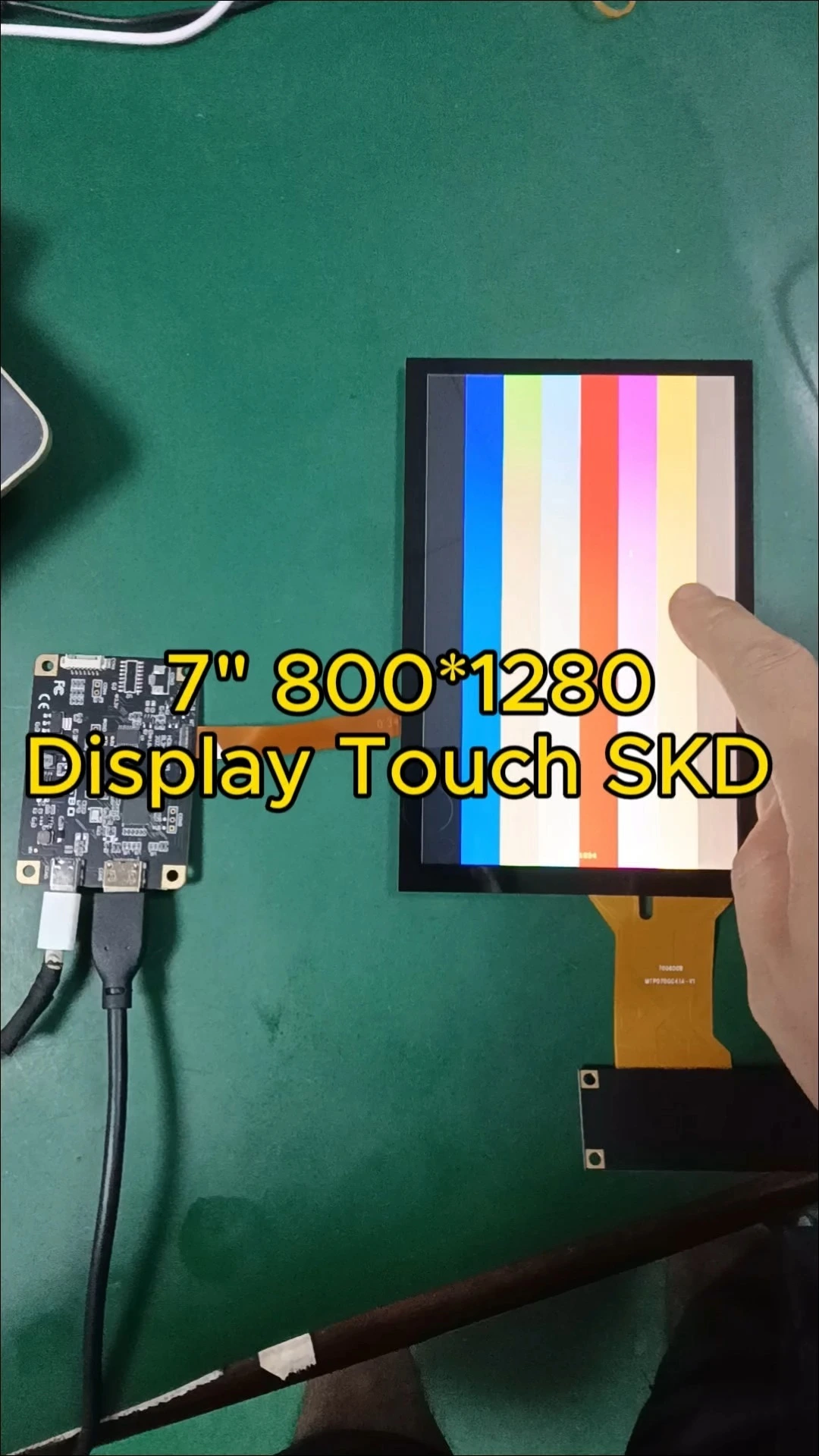

7 inch 800x1280 Display Touch Panel Kit Customized SKD MIPI to HDMI
The BSD1229-A7HL27-20H is a high-performance 7.0-inch LCD module designed for versatile display applications. Featuring an 800 × RGB × 1280 resolution and Normally Black display mode, it delivers sharp, vibrant visuals with a contrast ratio of 600:1 (typ. 800:1) and 360 cd/m² brightness. The module supports wide viewing angles (85° all directions) and a fast response time of 30–35 ms, ensuring smooth performance for dynamic content.
Equipped with a MIPI interface and ILI9881C-0HT00GA driver IC, it integrates seamlessly with modern systems. The 20-LED backlight ensures uniform illumination, while the 2.6mm slim profile (99.8 × 161.0 × 2.6 mm) suits space-constrained designs. Robust construction adheres to strict defect standards (e.g., no cracks, liquid crystal leaks).
Ideal for industrial, medical, and consumer electronics, its low-power design (3.3V/1.8V power supply) and ESD protection enhance reliability.
Product Brief
7" hD 800*1280 Display Touch Panel
The BSD1229-A7HL27-20H 7.0-inch LCD module combines high resolution (800×1280), wide viewing angles (85°), and 360 cd/m² brightness for crisp, energy-efficient displays. Its MIPI interface and 20-LED backlight ensure seamless integration and uniform lighting. With a 30–35 ms response time and 600:1 contrast ratio, it excels in dynamic applications. The compact design (99.8 × 161.0 mm) and Normally Black mode enhance readability in diverse environments. Rigorous quality checks guarantee durability (no critical defects like cracks or bubbles). Perfect for IoT devices, kiosks, and automotive displays.
Related Parameters
|
Parameter |
Specification |
|---|---|
|
Model |
BSD1229-A7HL27-20H |
|
Screen Size |
7.0 inch |
|
Resolution |
800 × RGB × 1280 |
|
Brightness |
360 cd/m² |
|
Contrast Ratio |
600:1 (typ. 800:1) |
|
Viewing Angle |
85° (all directions) |
|
Response Time |
30–35 ms |
|
Interface |
MIPI |
|
Backlight |
20 white LEDs |
|
Power Supply |
3.3V (VDD), 1.8V (IOVCC) |
|
Dimensions |
99.8 × 161.0 × 2.6 mm |
Why Choose This Display?
BSD1229-A7HL27-20H: A 7-inch LCD marvel with 800×1280 resolution, 360 cd/m² brightness, and 85° viewing angles. Engineered for reliability with MIPI interface and 20-LED backlight—perfect for industrial, medical, and smart devices. Slim, durable, and defect-free.
Application Scenario
