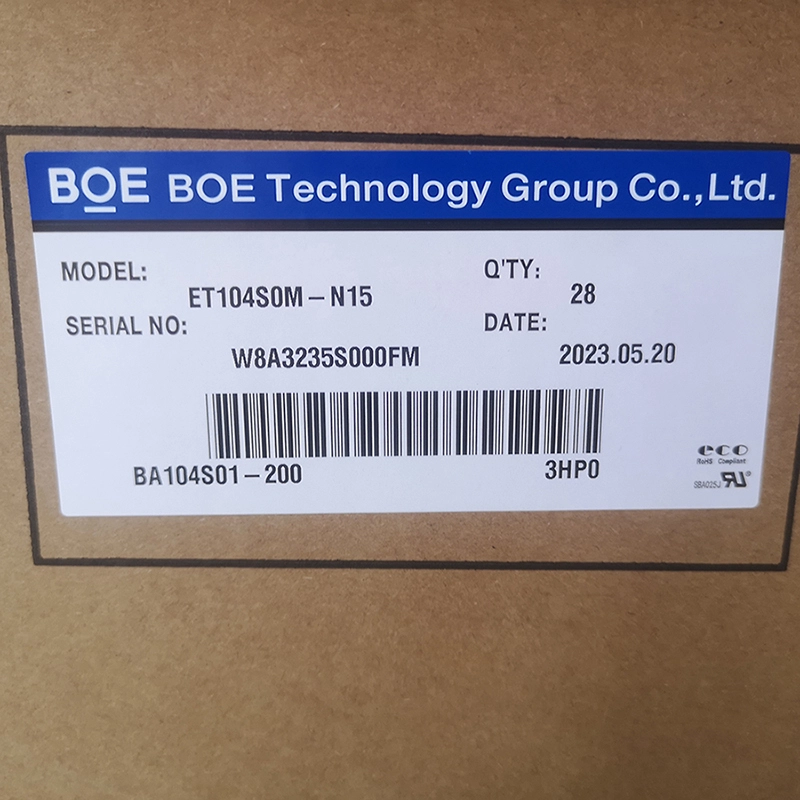

BOE 10.4 inch TFT Industrial LCD Screen BA104S01-200/ET104S0M-N15
Product About
BA104S01-200
10.4" 800*600 Display Panel
The ET104S0M-N11 is a durable 10.4-inch TFT-LCD module optimized for demanding environments. Its SVGA resolution (800×600) and 16.2M colors ensure sharp, vivid imagery. Key strengths include a wide operating temperature range (-20°C to 70°C), 300–350 cd/m² brightness, and 800:1 contrast ratio. Supporting 6/8-bit LVDS inputs, it integrates seamlessly into medical and industrial systems. Lightweight (300g) and slim (5.6mm), it suits portable or fixed installations. Enhanced with AG25 anti-glare coating and RoHS compliance, this module balances performance and eco-friendliness.
Related Parameters
|
Brand |
BOE |
Model P/N |
ET104S0M-N15/ |
|
Diagonal Size |
10.4" |
Panel Type |
a-Si TFT-LCD, LCM |
|
Resolution |
800(RGB)×600, SVGA 96PPI |
Pixel Format |
RGB Vertical Stripe |
|
Active Area |
211.2(W)×158.4(H) mm |
Outline Size |
236 × 176.9 × 5.9 (H×V×D) mm |
|
Brightness |
300-350 cd/m² |
Contrast Ratio |
800:1 (Typ.) (TM) |
|
Viewing Angle |
80/80/65/75(Typ.)(CR≥10) |
Display Mode |
TN, Normally Black, Transmissive |
|
Best View on |
6 o'clock |
Response Time |
30 (Typ.)(Tr+Td) ms |
|
Display Colors |
262K/16.2M 55% NTSC |
Lamp Type |
WLED [10S6P] , 15K hours , With LED Driver |
| Weight | 300g(Typ.) |
Signal Interface |
LVDS (1 ch, 6/8-bit) , 20 pins Connector |
|
Touch Screen |
Support OEM/ODM |
Input Voltage |
3.3 V (Typ.) |
|
Operating Temp |
-20 ~ 70 °C |
Storage Temp. |
-30 ~ 80 °C |
Product Advantages
Crystal-clear visuals, unmatched reliability: The ET104S0M-N115 TFT-LCD delivers 16.2M colors, 300+ cd/m² brightness, and 30,000-hour lifespan for industrial & medical excellence. Install with confidence.
