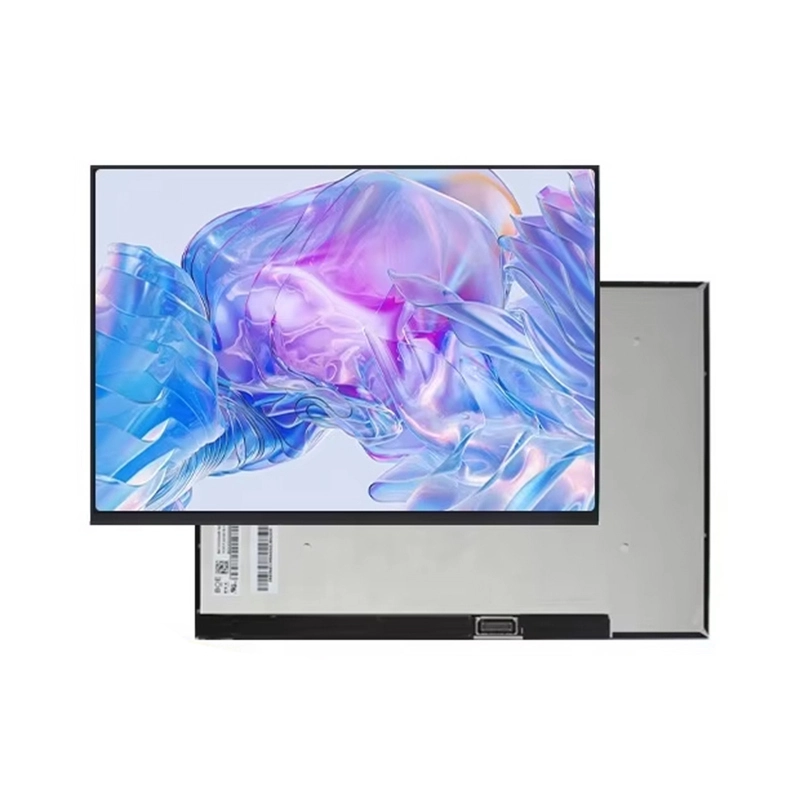

BOE 10.5 inch TFT LCD Screen NV105WAM-N31 FHD 1920x1080

BOE New 10.5" 16.7 million colors (8-bit) and 100% sRGB color gamut

The NV105WAM-N31 is a 10.51-inch Full-HD+ TFT-LCD module with a resolution of 1920×1280 pixels, delivering 16.7 million colors (8-bit) and 100% sRGB color gamut for vibrant, accurate visuals. Featuring a normally black display mode, it offers a high contrast ratio of 1500:1 (typ.) and a brightness of 420 cd/m² (typ.), ensuring clarity in various lighting conditions. The module supports eDP 1.4a interface with 2-lane 2.7Gbps link rates, enabling seamless connectivity for notebooks. Its thin and lightweight design (max 115g) integrates a single LED backlight (bottom-edge type) with low power consumption (2.08W max). Key features include PSR2+LRR/BIST/Instant On, on-board EDID, and RoHS/Halogen-free compliance. With a 15,000-hour LED lifespan and robust optical performance (Δu'v' ≤0.013 for color uniformity), it’s ideal for high-performance Notebook PCs.

Screen size:

10.5"

Place of origin:

China

Model number:

NV105WAM-N31

Resolution:

1920*1080

Delivery time:

With 15 days

Warranty:

12 Months

Inquiry

download

NV105WAM-N31_Bestar Supplier

Write a Review

Product About TFT LCD NV105WAM-N31

10.5" 1920*1080 TFT LCD Screen

The NV105WAM-N31 is a compact 10.51-inch TFT-LCD module designed for notebooks, featuring 1920×1280 resolution, 100% sRGB coverage, and 420 cd/m² brightness. Its amorphous silicon TFT technology ensures energy efficiency (0.42W panel power), while the eDP 1.4a interface supports high-speed data transmission. The module’s HC-hardened surface (2H hardness) resists scratches, and its low-reflection panel enhances readability. With a 1.95mm slim profile (without PCB) and 16.7M color depth, it balances performance and portability.

Related Parameters

Parameter	Specification	Unit	Remarks
Active Area	222.048×148.032	mm
Resolution	1920×1280	pixels	RGB Vertical Stripe
Brightness	420 (Typ.)	cd/m²	@60Hz, θ=0°
Contrast Ratio	1500:1 (Typ.)	—
Color Gamut	100% sRGB	%	Typ.
Power Consumption	2.08 (Max)	W	@Mosaic pattern
Interface	2-lane eDP 1.4a	—	2.7Gbps link rate
Weight	≤115	g

Application Scenario

Ultra-slim, vibrant, and efficient—the NV105WAM-N31 10.51-inch TFT-LCD delivers Full-HD+ clarity with 100% sRGB colors, perfect for high-performance notebooks. Low power, robust design, and eDP 1.4a compatibility redefine portable displays!

Frequently Asked Questions

What is the operating temperature range?

0°C to +50°C (non-condensing).

Does it support touch functionality?

No, this module is a standard TFT-LCD without touch.

What is the LED lifespan?

15,000 hours (typ.) at 12.4mA forward current.

Is the module RoHS compliant?

Yes, it meets RoHS and Halogen-free standards.

What’s the maximum power consumption?

2.08W (including backlight at full operation).

Can it be used in outdoor environments?

No, it’s designed for indoor use (ambient luminance ≤1 lux for testing).
