BOE 12.1 inch 1280x800 IPS TFT LCD Screen EV121WXM-N12

EV121WXM-N12 is a 12.1" a-Si TFT-LCD module product launched by BOE. It is equipped with WLED backlight, including LED driver backlight driver. The LCD screen has no touch, but we can customize the matching touch screen, as well as cables and driver board kits. Its operating temperature is -20 ~ 70°C and storage temperature is -30 ~ 80°C. Based on its sRGB, white LED backlight, life of more than 50,000 hours, including LED driver, terminal mounting, 6/8-bit grayscale optional, matte surface and other features, this model is recommended for use in industry and healthcare.

Screen size:

12.1"

Place of origin:

China, Guangdong

Model number:

EV121WXM-N12

Resolution:

1280x800

Delivery time:

Within 7 days

Warranty:

1 year

Inquiry

Write a Review

Product Introduction

The BOE 12.1 inch 1280x800 IPS TFT LCD Screen EV121WXM-N12 offers stunning image clarity, vibrant colors, and wide viewing angles to enhance your visual experience. Perfect for a wide range of applications.

Brand	BOE	Model P/N	EV121WXM-N12
Diagonal Size	12.1"	Panel Type	a-Si TFT-LCD, LCM
Resolution	1280(RGB)×800, WXGA 124PPI	Pixel Format	RGB Vertical Stripe
Active Area	261.12(W)×163.2(H) mm	Bezel Opening	264.12(W)×166.2(H) mm
Outline Size	277.7(W)×180.6(H) ×9.2(D) mm	Surface	Antiglare (Haze 25%)
Brightness	500 cd/m² (Typ.)	Contrast Ratio	1200:1 (Typ.) (TM)
Viewing Angle	85/85/85/85 (Typ.)(CR≥10)	Display Mode	ADS, Normally Black, Transmissive
Best View on	Symmetry	Response Time	30 (Typ.)(Tr+Td)
Display Colors	262K/16.7M 100% sRGB	Lamp Type	12S4P WLED , 50K hours , With LED Driver
Frequency	60Hz	Touch Screen	Without
Panel Weight	TBD	Application
Signal Interface	LVDS (1 ch, 6/8-bit) , 20 pins Connector
Input Voltage	3.3V (Typ.)
Environment	Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C

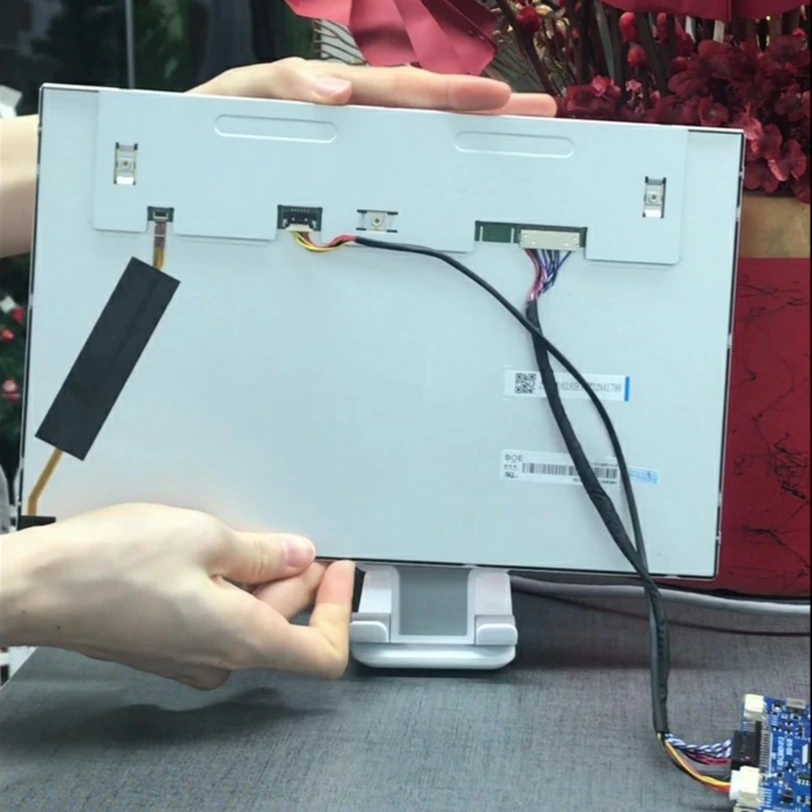

product display

2023_05_12_165056005~1

2023_05_12_165121688~1

2023_05_12_165125106~1

faq

What products can we provide

We can provide you LCD screen, touch panel, screen cables, AD board, mainboard and casing. We also support ODM/OEM service. We can customize the brightness of the product and the appearance of the touch screen according to your usage scenario.

When can you deliver the goods?

This is our hot-selling product and can usually be delivered within 3 days (depending on the quantity of the order).
