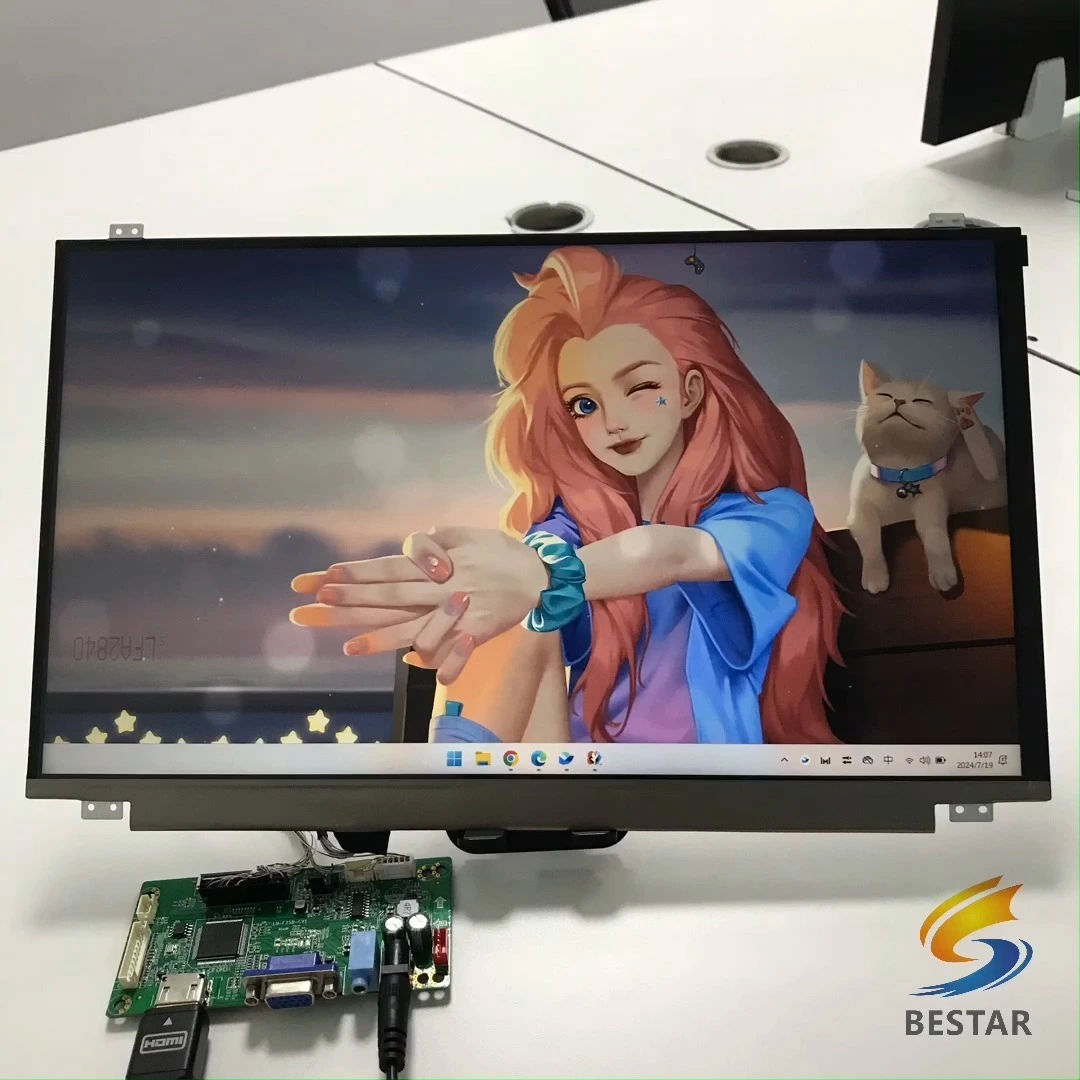

BOE 15.6 inch GV156FHM-N43 300Nits FHD IPS LCD Screen 1

BOE 15.6 inch GV156FHM-N43 300Nits FHD IPS LCD Screen 2

BOE 15.6 inch GV156FHM-N43 300Nits FHD IPS LCD Screen 3

BOE 15.6 inch GV156FHM-N43 300Nits FHD IPS LCD Screen 4

BOE 15.6 inch GV156FHM-N43 300Nits FHD IPS LCD Screen

Display Screen 1920*1080 EDP Notebook PC display Anti-glare screen

The GV156FHM-N43 V8.0 is a 15.6-inch FHD (1920×1080) TFT LCD module designed for Notebook PCs, featuring amorphous silicon TFT technology for sharp and vibrant displays. With 262K colors (6-bit depth) and a 300 cd/m² typical brightness, it delivers clear visuals even in varied lighting. Its 85° wide viewing angle (horizontal/vertical) and 800:1 contrast ratio ensure consistent image quality from multiple perspectives. The module integrates an eDP 1.2 interface (2-lane, 2.7Gbps) and on-board LED driver, reducing power consumption while supporting 6–21V LED backlight (40-LED array). Key advantages include RoHS compliance, halogen-free materials, and low reflection for eye comfort. Optimized for thin/lightweight designs, it’s ideal for portable devices requiring high color accuracy and energy efficiency.

Screen size:

15.6"

Place of origin:

China, Guangdong

Model number:

GV156FHM-N43

Resolution:

1920*1080

Delivery time:

Within 15 days

Warranty:

1 year

Inquiry

download

GV156FHM-N43 V8

Write a Review

Product Introduction

The GV156FHM-N43 V8.0 LCD module combines FHD resolution with low-power LED backlight for Notebook PCs. It supports 262K colors and offers 30ms response time, minimizing motion blur. The eDP 1.2 interface ensures seamless connectivity, while its 45% NTSC gamut enhances color reproduction. Built-in EDID chip and PWM dimming provide plug-and-play compatibility and brightness control. With 80%+ uniformity (5-point test) and compact design, it balances performance and portability.

BOE 15.6 inch GV156FHM-N43 300Nits FHD IPS LCD Screen 6

Parameter	Specification
Model	GV156FHM-N43 V8.0
Screen Size	15.6 inches
Resolution	1920×1080 (FHD)
Color Depth	6-bit (262K colors)
Brightness	300 cd/m² (typ.)
Contrast Ratio	800:1
Viewing Angle	85° (H/V, CR>10)
Response Time	30ms (Tr+Tf)
Interface	2-lane eDP 1.2 (2.7Gbps)
Backlight	40-LED array, 6–21V input
Power Supply	3.3V±0.3V

Application Scenario

Crisp FHD visuals, energy-efficient design—power your Notebook PC with BOE’s GV156FHM-N43 V8.0 LCD module. Wide angles, vivid colors, and plug-and-play reliability.

Notebook PCs

Primary display for ultrabooks and business laptops.

Multimedia devices:

Supports dynamic content with 30ms response time

Embedded Systems:

Reliable displays for industrial/commercial tools.

Industrial Displays:

Durable AG coating resists scratches in harsh environments.

Frequently Asked Questions

What is the operating temperature range?

0°C to +50°C (non-condensing).

Does it support touch functionality?

No, this is a standard LCD module without touch.

Is the backlight user-replaceable?

No, the LED backlight is integrated; disassembly voids warranty.

What’s the typical power consumption?

Depends on brightness; LED driver operates at 6–21V with low current.

Are mounting holes included?

Refer to mechanical drawings (Figure 6) for dimensions.

Is EDID data programmable?

Pre-programmed; custom EDID requires factory support.
