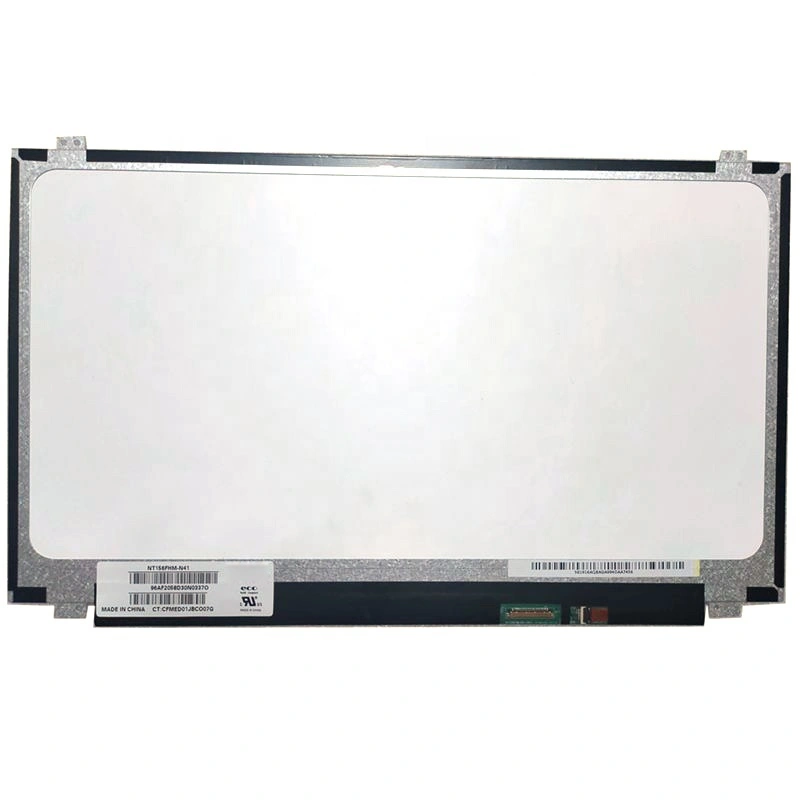

BOE 15.6 inch TN TFT LCD Screen 1920*1080 FHD NT156FHM-N41
Product Brief
15.6" 1920*1080 Display Panel
BOE's NT156FHM-N41 is a high-performance 15.6-inch LCD display module offering Full HD 1080p resolution. It utilizes an eDP interface for seamless connectivity and provides excellent color reproduction with 262K colors. The module is engineered for low power operation and features a normally white display mode. With its compact dimensions and robust construction, it is optimized for integration into modern notebook computers. This product combines clarity, efficiency, and durability in a single solution.
Related Parameters
| Parameter Name | Value and Unit |
| Model | NT156FHM-N41 |
| Active Area | 344.16 mm x 193.59 mm |
| Number of Pixels | 1920 x 1080 pixels |
| Pixel Pitch | 0.17925 mm x 0.17925 mm |
| Display Colors | 262,144 (6-bit) |
| Luminance (White, Typical) | 220 cd/m² |
| Contrast Ratio (Typical) | 500 : 1 |
| Viewing Angle (Horizontal, Typical) | 45° (CR > 10) |
| Viewing Angle (Vertical, Typical) | 20° (12 o'clock), 40° (6 o'clock) |
| Response Time (Typical) | 12 ms |
| Power Consumption (Max) | 4.42 W |
| Supply Voltage (Logic) | 3.3 V (typical) |
| Operating Temperature | 0°C to +50°C |
| Storage Temperature | -20°C to +60°C |
| Weight (Max) | 370 g |
| Interface | eDP 1.2, 2 lanes |
| LED Lifespan | 15,000 hours |
Product Advantages
Boost your visuals with BOE's NT156FHM-N41: A 15.6-inch Full HD LCD module offering crisp 1080p clarity, low energy use, and long-lasting LED backlight. Perfect for sleek notebooks, it combines brightness and reliability in a compact design.
