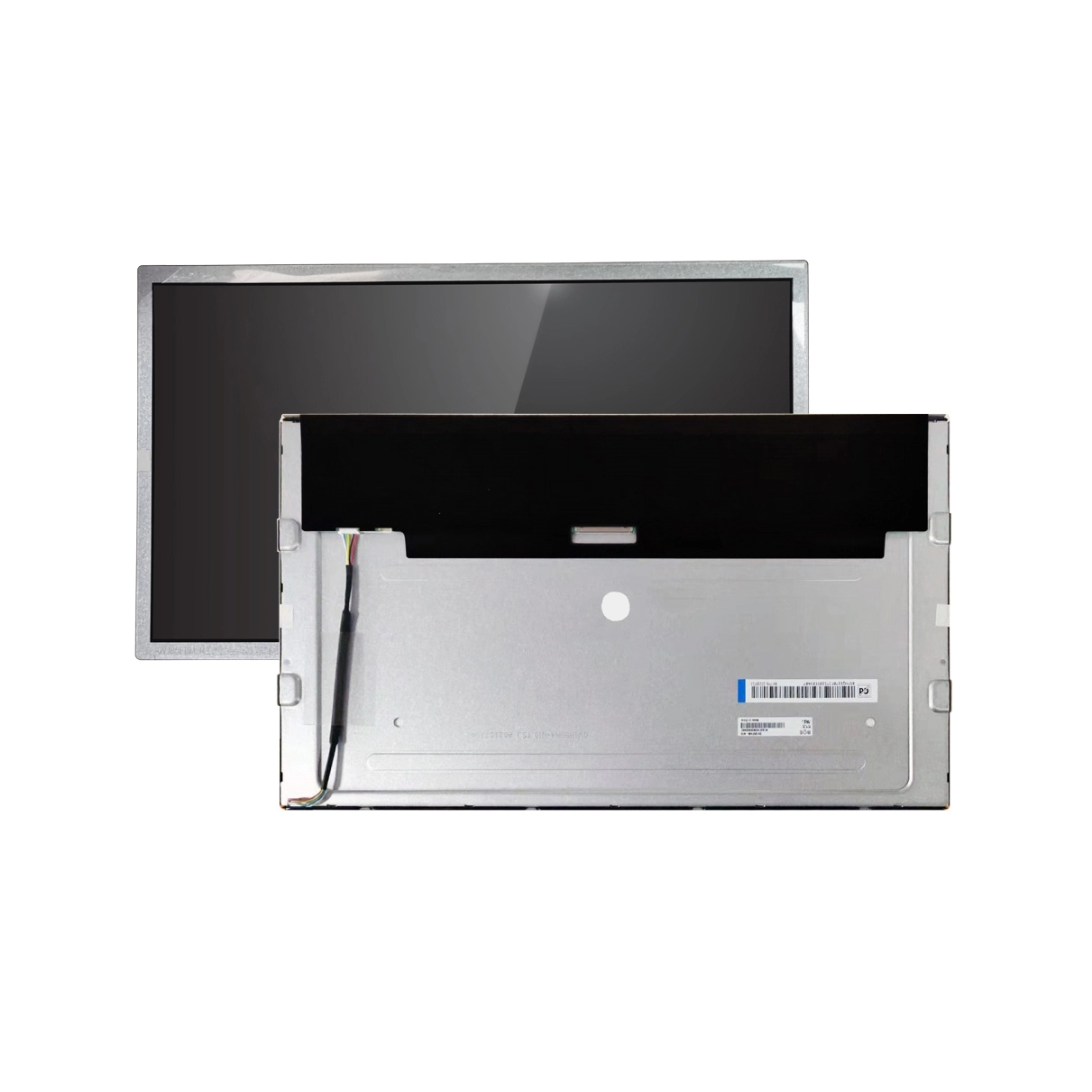

BOE 18.4 inch TFT LCD Screen EV184QUM-N80 1000NIts 4K 3840(RGB)×2160

The EV184QUM-N80 is an 18.4-inch liquid crystal module product launched by BOE Technology Group Co., Ltd. (BOE). It uses a-Si TFT-LCD technology, is equipped with WLED backlight, includes an LED driver for backlight driving, and has no touch function. The display resolution of the EV184QUM-N80 is 3840(RGB)×2160 (UHD), with an aspect ratio of 16:9 (width:height). The pixels are arranged in vertical RGB stripes, and the pixel density is 238 PPI. Its display area size is 408.96×230.04 (width×height) mm, the visible size is 415×233.744 (width×height) mm, the appearance size is 431×255.844 (width×height)×16.5 (thickness) mm, the surface treatment is matte (Haze 25%), and the net weight of the product is 1.29±0.13 Kgs. In terms of backlight, this product uses a side-entry light source (top and bottom) with 7S6P WLED lighting. The service life of the light source is 30K hours, and it includes an LED driver. The EV184QUM-N80 uses an eDP (4 Lanes) signal interface, with a total of 40 pins, connected by terminals. The driving voltage of the screen is 12.0V (Typ.). Its typical vertical refresh rate Fv is 60Hz. If you want to use the EV184QUM-N80 liquid crystal module in the development of new products, Screen Bank® recommends that you contact BOE or its agents to learn about the latest production status information and technical information of the EV184QUM-N80. Its operating temperature ranges from 0 to 50°C, the storage temperature ranges from -20 to 60°C, and the vibration resistance is 1.5G (14.7 m/s²). Based on its features such as DCI-P3, Adobe RGB, sRGB, ultra-high brightness, white LED backlight, including LED driver, 10-bit grayscale, matte surface, Application: HMI, etc., this model is recommended for use in medical imaging and healthcare.
