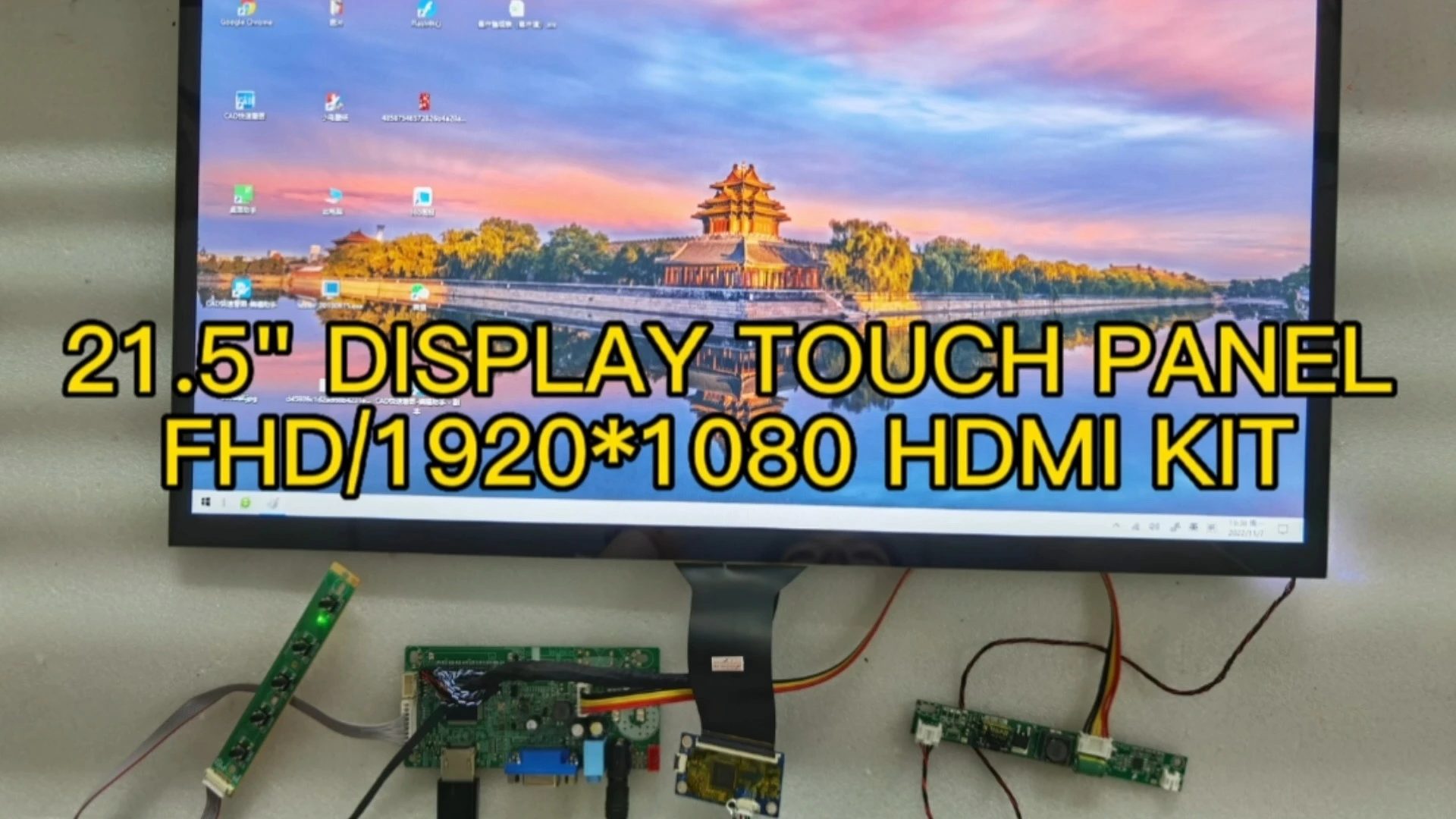

BOE 21.5 inch DV215FHM-NN0 FHD Industrial TFT LCD Screen 1920*1080
IPS TFT LCD Screen 1920*1080 LVDS Interface 250nits
The DV215FHM-NN0 is a 21.5-inch TFT LCD module with Full HD resolution (1920×1080 pixels), delivering 16.7 million colors through an RGB vertical stripe pixel arrangement. Featuring a high-brightness LED backlight (500 cd/m² typ) and 1000:1 contrast ratio, it ensures vivid visuals with wide viewing angles (89° typ). The anti-glare, 3H-hardness surface minimizes reflections and scratches. Its LVDS interface supports high-speed data transmission (74MHz clock), while the 6-bit Hi-FRC color depth enables smooth color reproduction. With a typical power consumption of 19.8W and a 30,000-hour LED lifespan, this RoHS-compliant module is engineered for reliability in industrial and commercial applications.
5.0
Screen size:
21.5"
Place of origin:
China, Guangdong
Model number:
DV215FHM-NN0
Resolution:
1920*1080
Delivery time:
Within 15 days
Warranty:
1 year
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Product Introduction
The DV215FHM-NN0 LCD module combines a 21.5-inch active display area (476.06×267.79 mm) with FHD clarity and low-reflection technology. It integrates an edge-lit LED backlight (one light bar) for uniform luminance (75% min uniformity) and supports DE-only signal mode. Operating at 5V power supply, it offers a slim profile (10.7mm depth) and weighs 1.97kg. Ideal for embedded systems, its robust design includes gamma correction and reverse-type functionality for versatile integration.
Why Choose This Display?
Experience crystal-clear FHD visuals with the DV215FHM-NN0: 21.5-inch industrial LCD, 500-nit brightness, and 30,000-hour reliability. Perfect for demanding applications.
Abundant Stock, No Supply Worries
We maintain large inventory levels, ensuring stable supply with zero risk of discontinuation.
Authorized Distributor, Factory Pricing
As an authorized primary agent, we offer you the most competitive prices straight from the source factory.
Fully Customizable Display Touch Solutions
Tailor brightness levels, touchscreen aesthetics, and driver board functionality to perfectly match your requirements.
12-Month Warranty + Lifetime Support
Enjoy a 12-month warranty plus lifetime online technical assistance—your peace of mind is our priority.
Application Scenario
Industrial Automation
Control panels, machinery interfaces, and monitoring systems in industrial settings, engineered for temperature resilience (-10°C to +55°C) and vibration/shock resistance.
Medical Devices
Patient monitors, diagnostic equipment, and laboratory instruments, benefiting from high contrast (1000:1), anti-glare coatings, and compliance with hygiene standards.
Retail & POS Systems
Point-of-sale terminals, self-checkout kiosks, and digital signage in stores, restaurants, or hotels, supported by 16.7M colors and 50,000-hour LED backlight lifespan.
Transportation
Airports, train stations, and automotive displays, engineered for stable operation in fluctuating temperatures and humidity (10–90% RH).
Outdoor/Government Applications
Ticketing machines, information displays, and control centers, thanks to IP65-rated dust resistance and RoHS/Halogen-free compliance.
Education & Public Spaces
Interactive whiteboards, digital classrooms, and museums, leveraging its scratch-resistant 3H polarizer and wide viewing angles (85° horizontal/vertical).
Frequently Asked Questions
1
What is the warranty period?
The module carries a 12-month warranty from delivery, excluding damage from misuse or unauthorized modifications.
2
What is the maximum operating temperature?
The module operates reliably within 0°C to +50°C (per Table 2, Absolute Ratings).
3
Does it support touch functionality?
No, the specification does not include touch features (refer to Section 1.2 Features).
4
What is the LED backlight lifespan?
The LED lifetime is 30,000 hours at 80mA current (Section 3.0 Electrical Specifications).
5
Is this module RoHS compliant?
Yes, it adheres to RoHS/Halogen-Free standards (Section 1.2 Features).
6
What interface does it use for signal input?
It uses an LVDS interface with DE (Data Enable) mode (Section 5.0 Interface Connection).
