BESTAR can provide OEM&ODM services for all kinds of display touch screen SKD kits

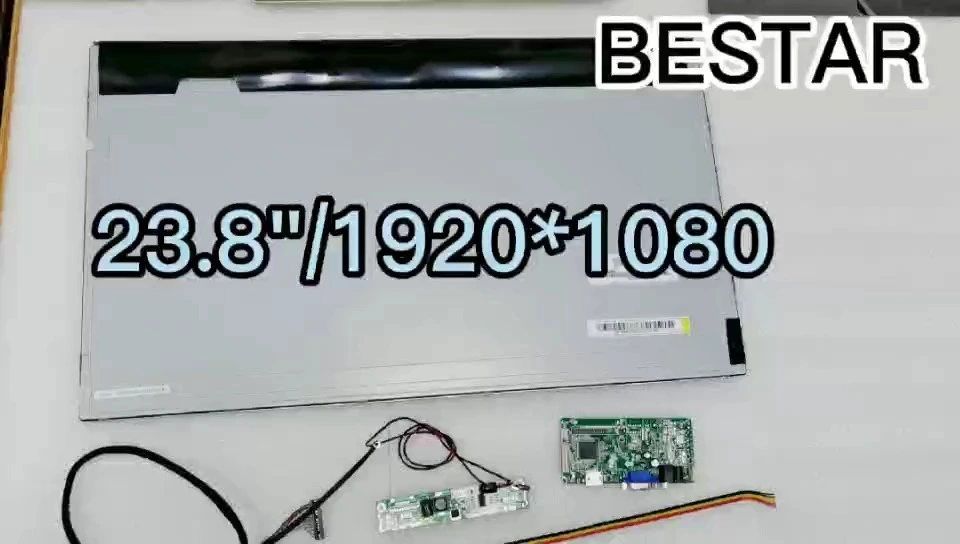

BOE 23.8 inch MV238FHM-NG0 FHD Industrial TFT LCD Screen 1920*1080 1

BOE 23.8 inch MV238FHM-NG0 FHD Industrial TFT LCD Screen 1920*1080 2

BOE 23.8 inch MV238FHM-NG0 FHD Industrial TFT LCD Screen 1920*1080 3

BOE 23.8 inch MV238FHM-NG0 FHD Industrial TFT LCD Screen 1920*1080

IPS TFT LCD Screen 1920*1080 LVDS Interface 350 nits

The MV238FHM-NG0 is a high-performance 23.8-inch TFT-LCD module featuring Full HD (1920×1080) resolution and 16.7 million colors for vibrant, sharp visuals. Designed with amorphous silicon TFT technology, it ensures smooth performance for desktop PCs, workstations, and control systems. With a low-reflection, high-color panel, it delivers excellent clarity and reduced glare. The module supports 60Hz and 144Hz refresh rates, catering to both standard and high-speed applications. Its LED backlight offers a typical brightness of 250 cd/m² and a lifespan of 30,000 hours (50% brightness retention). Power-efficient with typical consumption of 3.5W@60Hz and 4.5W@144Hz, it includes LVDS interface for seamless connectivity. Ideal for slim monitors and industrial displays, it combines reliability, energy efficiency, and superior color performance in a compact design.

Screen size:

23.8"

Place of origin:

China, Guangdong

Model number:

MV238FHM-NG0

Resolution:

1920*1080

Delivery time:

Within 15 days

Warranty:

1 year

Inquiry

Write a Review

Product Introduction

The MV238FHM-NG0 is a 23.8-inch FHD TFT-LCD module with a 1920×1080 pixel array, delivering crisp images and 16.7M colors. It features a low-power LED backlight (18.1W typical) and supports 60Hz/144Hz refresh rates for versatile use. The LVDS interface ensures stable signal transmission, while its slim design (12.7mm depth) suits space-constrained setups. With 30,000-hour LED lifespan and anti-glare coating, it’s built for durability. Perfect for monitors, control systems, and workstations, it balances performance and efficiency.

BOE 23.8 inch MV238FHM-NG0 FHD Industrial TFT LCD Screen 1920*1080 5

Parameter	Specification
Model	MV238FHM-NG0
Screen Size	23.8 inches (diagonal)
Resolution	1920×1080 (FHD)
Colors	16.7 million
Refresh Rate	60Hz / 144Hz
Brightness	250 cd/m² (typical)
Backlight Lifespan	30,000 hours (50% brightness)
Power Consumption	3.5W@60Hz, 4.5W@144Hz (typical)
Interface	LVDS
Dimensions (H×V×D)	535.0 × 313.0 × 12.7 mm (typical)
Weight	2200g

Why Choose This Display?

Illuminate Your Workspace with Clarity: The GV190E0M-N10 19-inch Industrial Display – 16.7M Colors, 50,000-Hour Lifespan, and Unmatched Durability for Demanding Applications.

BOE 23.8 inch MV238FHM-NG0 FHD Industrial TFT LCD Screen 1920*1080 6

Rugged Design

Survives harsh environments and frequent use.

BOE 23.8 inch MV238FHM-NG0 FHD Industrial TFT LCD Screen 1920*1080 7

Energy Efficiency

LED backlight reduces power consumption.

Customizable

Supports portrait rotation (90°) and dynamic content updates.

OptionalAC&DCTypeIISPD&SPDfailurealarm-282

Global Certifications

Supports portrait rotation (90°) and dynamic content updates.

Application Scenario

Industrial Automation

Control panels, machinery interfaces, and monitoring systems in industrial settings, engineered for temperature resilience (-10°C to +55°C) and vibration/shock resistance.

Medical Devices

Patient monitors, diagnostic equipment, and laboratory instruments, benefiting from high contrast (1000:1), anti-glare coatings, and compliance with hygiene standards.

Retail & POS Systems

Point-of-sale terminals, self-checkout kiosks, and digital signage in stores, restaurants, or hotels, supported by 16.7M colors and 50,000-hour LED backlight lifespan.

Transportation

Airports, train stations, and automotive displays, engineered for stable operation in fluctuating temperatures and humidity (10–90% RH).

Outdoor/Government Applications

Ticketing machines, information displays, and control centers, thanks to IP65-rated dust resistance and RoHS/Halogen-free compliance.

Education & Public Spaces

Interactive whiteboards, digital classrooms, and museums, leveraging its scratch-resistant 3H polarizer and wide viewing angles (85° horizontal/vertical).

Frequently Asked Questions

What is the resolution of the MV238FHM-NG0?

It supports 1920×1080 (Full HD) resolution.

Does it support high refresh rates?

Yes, it offers 60Hz and 144Hz refresh rates.

What is the lifespan of the LED backlight?

The backlight lasts 30,000 hours (until brightness drops to 50%).

What interfaces does it use?

It uses an LVDS interface for signal transmission.

Is this module suitable for industrial use?

Yes, it’s designed for monitors, workstations, and control systems.

What are the power requirements?

It operates at 5V DC with typical consumption of 3.5W@60Hz.
