BOE 43 inch DV430FHM-NN1 FHD TFT-LCD For Digital Signage Use 1

BOE 43 inch DV430FHM-NN1 FHD TFT-LCD For Digital Signage Use 2

BOE 43 inch DV430FHM-NN1 FHD TFT-LCD For Digital Signage Use 3

BOE 43 inch DV430FHM-NN1 FHD TFT-LCD For Digital Signage Use 4

BOE 43 inch DV430FHM-NN1 FHD TFT-LCD For Digital Signage Use 5

BOE 43 inch DV430FHM-NN1 FHD TFT-LCD For Digital Signage Use

IPS TFT LCD Screen 1920*1080 LVDS Interface High Brighness

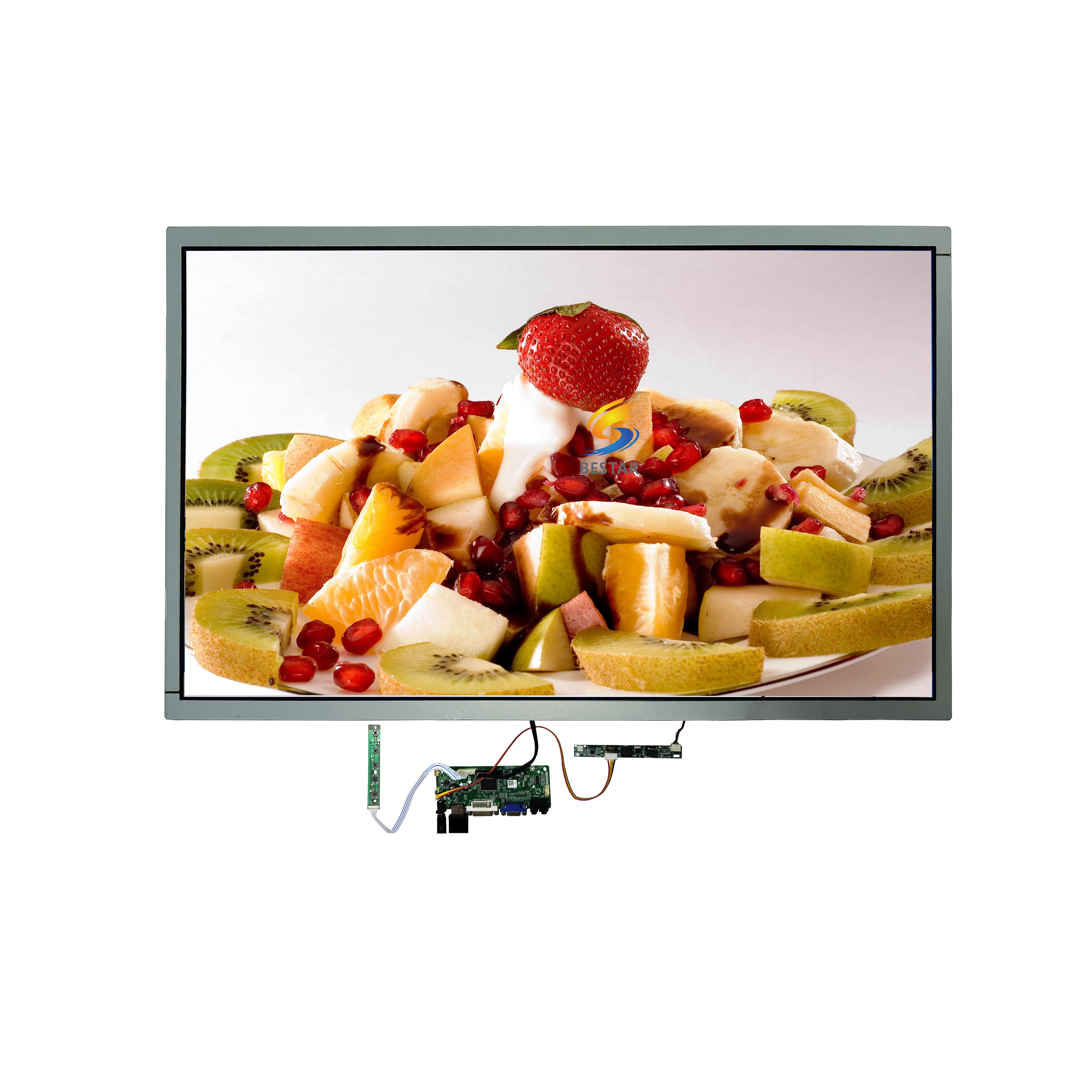

The BOE DV430FHM-NN1 is a 42.5-inch FHD TFT-LCD module with 1920×1080 resolution, delivering 16.7 million colors via 8-bit depth. Featuring 400 cd/m² typical brightness (Table 14), 1200:1 contrast ratio, and 89° wide viewing angles, it ensures vivid visuals. Its LVDS interface (2 pixel/clock), GOA-mode narrow bezel, and ADS technology enable high-speed response with low color shift (Section 1.2). With LED backlight consuming 56.3W (Table 1) and 30,000-hour lifespan (Table 4), it suits demanding applications. RoHS-compliant and designed for reliability, it balances performance with energy efficiency.

Screen size:

43"

Place of origin:

China, Guangdong

Model number:

DV430FHM-NN1

Resolution:

1920*1080

Delivery time:

Within 15 days

Warranty:

1 year

Inquiry

download

DV430FHM-NN1-百升达

Write a Review

Product Introduction

The DV430FHM-NN1 TFT-LCD module offers a 42.5-inch FHD display (940.896×529.254 mm active area) with 400 cd/m² brightness and 72% color gamut. Utilizing LVDS connectivity and vertical RGB stripe pixels (Table 1), it supports DE-only mode and operates at 0–50°C (Table 2). Its E-LED backlight ensures uniform 75% luminance (Table 14), while the 8.36 kg design (Section 7.1) integrates seamlessly into AV systems and control terminals.

BOE 43 inch DV430FHM-NN1 FHD TFT-LCD For Digital Signage Use 7

Parameter	Specification	Unit
Model	DV430FHM-NN1	–
Active Area	940.896×529.254	mm
Resolution	1920×1080	pixels
Brightness (Typ.)	400	cd/m²
Contrast Ratio (Typ.)	1200:1	–
Viewing Angle (H/V)	89°/89°	deg
Power Consumption (LED)	56.3	W
Operating Temperature	0 to +50	°C
LED Lifespan	30,000	hours
Weight	8.36	kg

Application Scenario

Experience FHD clarity: BOE's 42.5-inch DV430FHM-NN1 LCD with 400-nit brightness, wide viewing angles, and 30,000-hour LED lifespan. Ideal for control systems and UHD displays

Industrial Automation

Control panels, machinery interfaces, and monitoring systems in industrial settings, engineered for temperature resilience (-10°C to +55°C) and vibration/shock resistance.

Medical Devices

Patient monitors, diagnostic equipment, and laboratory instruments, benefiting from high contrast (1000:1), anti-glare coatings, and compliance with hygiene standards.

Retail & POS Systems

Point-of-sale terminals, self-checkout kiosks, and digital signage in stores, restaurants, or hotels, supported by 16.7M colors and 50,000-hour LED backlight lifespan.

Transportation

Airports, train stations, and automotive displays, engineered for stable operation in fluctuating temperatures and humidity (10–90% RH).

Outdoor/Government Applications

Ticketing machines, information displays, and control centers, thanks to IP65-rated dust resistance and RoHS/Halogen-free compliance.

Education & Public Spaces

Interactive whiteboards, digital classrooms, and museums, leveraging its scratch-resistant 3H polarizer and wide viewing angles (85° horizontal/vertical).

Frequently Asked Questions

What is the display’s resolution?

1920×1080 pixels (FHD), per Table 1.

Does it support HDR?

The specification does not mention HDR support.

What is the operating temperature range?

0°C to +50°C

How long is the LED backlight lifespan?

30,000 hours (50% initial luminance at 25°C)
