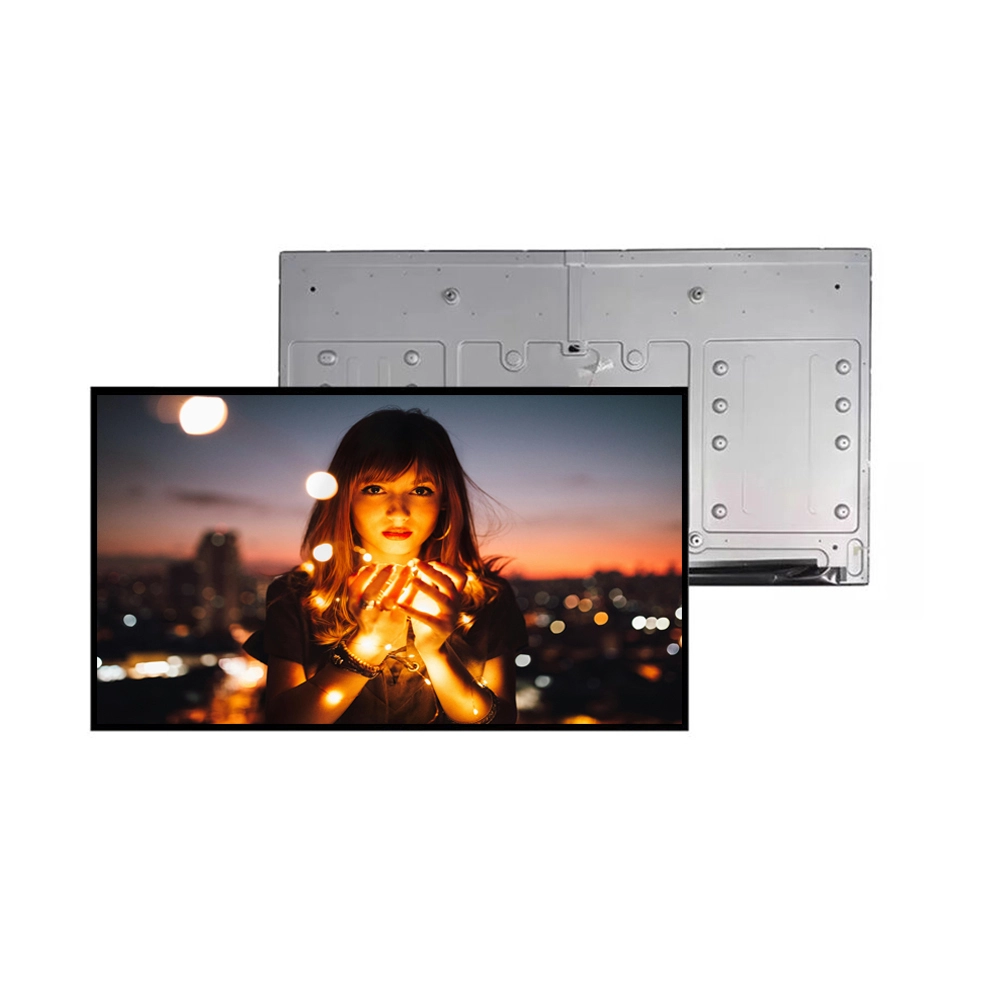

BOE 43 inch DV430FHM-NN5 FHD TFT-LCD 700Nits For Digital Signage Use 1

BOE 43 inch DV430FHM-NN5 FHD TFT-LCD 700Nits For Digital Signage Use 2

BOE 43 inch DV430FHM-NN5 FHD TFT-LCD 700Nits For Digital Signage Use 3

BOE 43 inch DV430FHM-NN5 FHD TFT-LCD 700Nits For Digital Signage Use 4

BOE 43 inch DV430FHM-NN5 FHD TFT-LCD 700Nits For Digital Signage Use 5

BOE 43 inch DV430FHM-NN5 FHD TFT-LCD 700Nits For Digital Signage Use 6

BOE 43 inch DV430FHM-NN5 FHD TFT-LCD 700Nits For Digital Signage Use

IPS TFT LCD Screen 1920*1080 LVDS Interface High Brighness 700CD

The BOE DV430FHM-NN5 is a 42.5-inch industrial-grade TFT-LCD module designed for high-performance commercial displays. It features a Full HD (1920x1080) resolution with an 8-bit color depth, delivering vibrant and accurate 16.7 million colors. With a high typical brightness of 700 cd/m² and a 1200:1 contrast ratio, it ensures excellent visibility. The module utilizes advanced ADS technology for wide viewing angles (89°/89°) and superior image quality with low color shift. Its robust design supports 24/7 operation and landscape or portrait orientation. Interface is via a standard 2-port LVDS connection, and it incorporates an E-LED backlight system. This module is ideal for demanding applications requiring reliability, wide viewing angles, and consistent color performance.

Screen size:

43"

Place of origin:

China, Guangdong

Model number:

DV430FHM-NN5

Resolution:

1920*1080

Delivery time:

Within 15 days

Warranty:

1 year

Inquiry

download

DV430FHM-NN5 700亮度-百升达

Write a Review

Product Introduction

The DV430FHM-NN5 from BOE is a 43-inch FHD open cell LCD module. It boasts a high brightness of 700 cd/m² and displays 16.7M colors for rich imagery. Engineered for continuous operation, it supports both horizontal and vertical display modes. Key features include wide viewing angles, LVDS interface, and ADS technology for enhanced visual performance and faster response. This model is RoHS compliant and is suited for digital signage and control systems where durability and consistent quality are paramount.

BOE 43 inch DV430FHM-NN5 FHD TFT-LCD 700Nits For Digital Signage Use 8

Parameter	Specification
Model	DV430FHM-NN5
Screen Size	43 inch
Active Area	940.896 (H) x 529.254 (V) mm
Resolution	1920 (H) x 1080 (V) pixels
Pixel Pitch	163.35 (H) x 490.05 (V) μm
Display Colors	16.7M colors
Luminance (Typ.)	700 cd/m²
Contrast Ratio (Typ.)	1200:1
Viewing Angle (H/V, Typ.)	89°/89° degrees
Response Time (G to G, Typ.)	8 ms
Interface	2-port LVDS
Power Supply (VDD)	12.0 V
Power Consumption (Open Cell Typ.)	6 W
Backlight Type	E-LED
Display Mode	Normally Black
Weight (Typ.)	8.36 Kg

Application Scenario

BOE DV430FHM-NN5: Your 42.5-inch FHD solution for reliable, 24/7 commercial displays. Experience wide viewing angles, vibrant colors, and robust performance for digital signage and control systems. Engineered for clarity and endurance.

Frequently Asked Questions

What is the native resolution of the DV430FHM-NN5 module?

The native resolution is Full High Definition (FHD), 1920 pixels horizontally by 1080 pixels vertically.

Does this display module support vertical (portrait) orientation?

Yes, the specification states it supports both landscape and portrait display modes.

What type of video interface does this module use?

It uses a Low-Voltage Differential Signaling (LVDS) interface, specifically a 2-port configuration.

Is this display suitable for continuous, 24/7 operation?

Yes, the product specification lists "Use 7 * 24 hr" as a feature, indicating it is designed for continuous operation.

What is the typical power consumption of the LCD panel itself?

The typical power consumption for the TFT LCD open cell (logic and drivers) is 6 Watts with a 12.0V supply. The separate LED backlight driver has a maximum output power of 66.6W.
