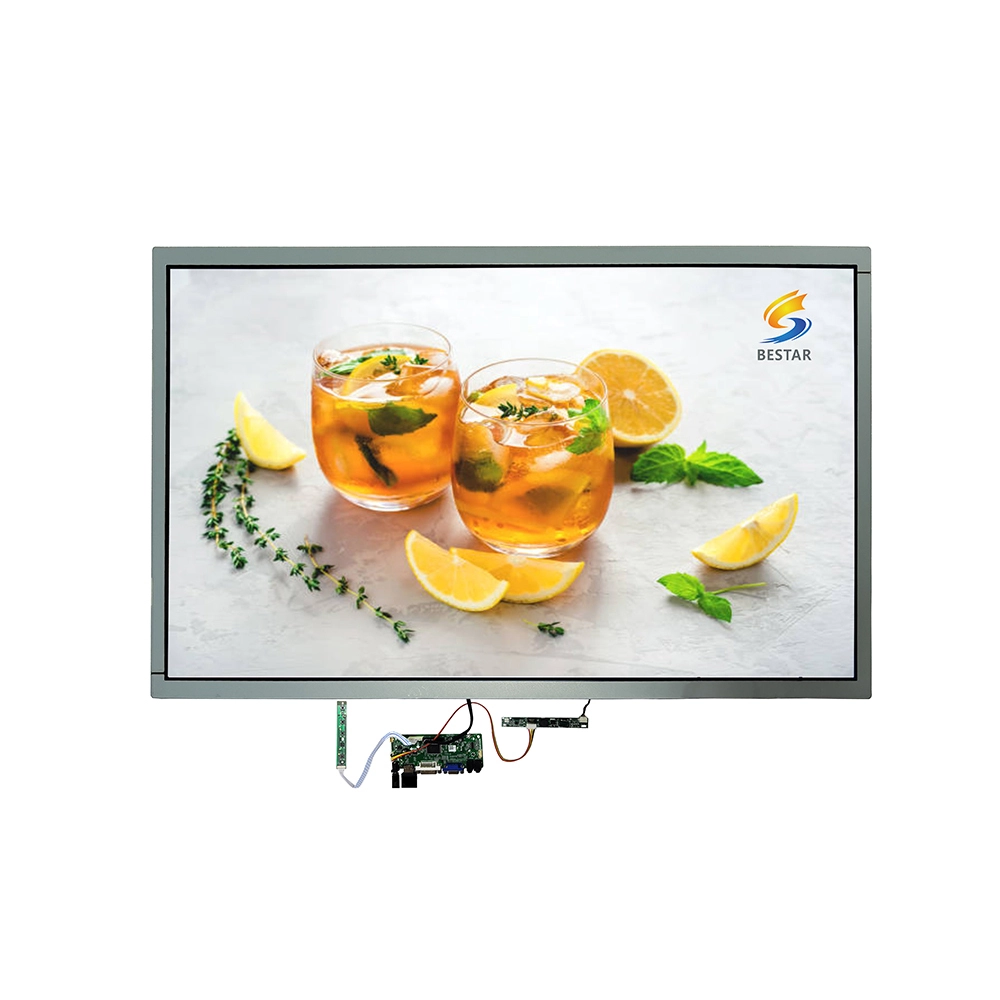

BOE 49 inch DV490FHM-NN3 FHD TFT-LCD For Digital Signage Use

IPS TFT LCD Screen 1920*1080 LVDS Interface 400CD Brighness

The BOE DV490FHM-NN3 is a 49-inch TFT LCD module designed for commercial digital signage. It features an FHD resolution (1920×1080 pixels), 16.7 million colors (8-bit depth), and a typical brightness of 400 cd/m². Utilizing amorphous silicon TFT technology and ADS (Advanced Super Dimension Switch) for enhanced image quality, it offers wide viewing angles (89° horizontal/vertical), a 1200:1 contrast ratio, and low color shift. The module supports LVDS interface with 2-pixel/clock transmission, GOA (Gate on Array) dual-side drive for narrow bezels, and consumes 5.4W (typ.) at 12V. Its low-reflection surface, 8ms response time, and RoHS compliance ensure durability and vivid visuals for high-impact displays.

Screen size:

49"

Place of origin:

China, Guangdong

Model number:

DV490FHM-NN3

Resolution:

1920*1080

Delivery time:

Within 15 days

Warranty:

1 year

Inquiry

download

DV490FHM-NN3 Product Specification_Rev

Write a Review

Product Introduction

The DV490FHM-NN3 is a 49-inch FHD TFT LCD module optimized for digital signage and control systems. It delivers 16.7 million colors with 400 cd/m² brightness and a 1200:1 contrast ratio. Featuring LVDS connectivity, vertical stripe RGB pixel arrangement, and GOA-driven narrow bezels, it supports portrait/landscape orientations. With ADS technology for reduced color shift and 89° viewing angles, this RoHS-compliant module ensures reliable performance in commercial environments.

BOE 49 inch DV490FHM-NN3 FHD TFT-LCD For Digital Signage Use 8

Parameter	Specification	Unit
Model	DV490FHM-NN3	–
Active Area	1073.8 × 604	mm
Resolution	1920 × 1080	pixels
Display Colors	16.7M (8-bit)	colors
Brightness (Typ.)	400	cd/m²
Contrast Ratio	1200:1	–
Viewing Angle (H/V)	89° / 89°	deg
Response Time	8	ms
Power Consumption (Typ.)	5.4	W
Supply Voltage	10.8–13.2	Vdc
Dimensions	1090.4 × 621.3 × 27.355 (Max.)	mm
Weight	9800 (Max.)	g
Interface	51-pin LVDS	–

Application Scenario

Unlock vivid visuals with BOE’s 49-inch FHD display: 400-nit brightness, 1200:1 contrast, and wide-angle clarity for dynamic digital signage. Engineered for reliability and brilliance.

BOE 49 inch DV490FHM-NN3 FHD TFT-LCD For Digital Signage Use 9

Commercial Digital Signage

Public information displays, advertising screens.

BOE 49 inch DV490FHM-NN3 FHD TFT-LCD For Digital Signage Use 10

Control System Terminals

Monitoring dashboards in industrial/retail settings.

Portrait/Landscape Displays

Interactive kiosks, wayfinding systems.

Frequently Asked Questions

What is the resolution of the DV490FHM-NN3?

It supports FHD resolution (1920 × 1080 pixels).

Does it support portrait orientation?

Yes, it is designed for both portrait and landscape display modes.

What is the typical power consumption?

5.4W at 12V input (per Table 3 electrical specifications).

What interface does this module use?

It uses a 51-pin LVDS interface (2-pixel/clock transmission).

Is the module RoHS compliant?

Yes, it meets RoHS environmental standards.

What is the LED backlight lifespan?

The LED backlight has a lifespan of 15,000 hours (at 120mA current).
