Customized Embedded Display Touch Monitor 10.1 inch 500nits 1920*1200
The BSDTMN101-003AOF 10.1-inch Embedded Touch Monitor is an industrial-grade display designed for rugged environments. Key features include a 1920x1200 IPS widescreen with 16:10 aspect ratio, delivering vibrant colors (16.7M) and 80/80/80/80° wide viewing angles. Equipped with a 10-point capacitive touch screen, it supports multi-touch gestures and works seamlessly with Windows/Linux/Android systems. The ultra-slim design integrates a metal backplate and raised bezel for flush mounting in cabinets, while offering VESA 75x75/100x100mm compatibility and optional wall/stand mounts.
Engineered for reliability, it boasts a 50,000-hour MTBF, 15000-hour LED backlight lifespan, and IP-rated durability (dust/water-resistant). Advanced thermal management ensures stable performance in 0–50°C operating temperatures. Customizable options (e.g., high-brightness mode, anti-glare coatings) and compliance with global safety standards make it ideal for industries like healthcare, transportation, and manufacturing. With a 1-year warranty and modular design, this monitor prioritizes longevity and adaptability for mission-critical applications.
Product Brief

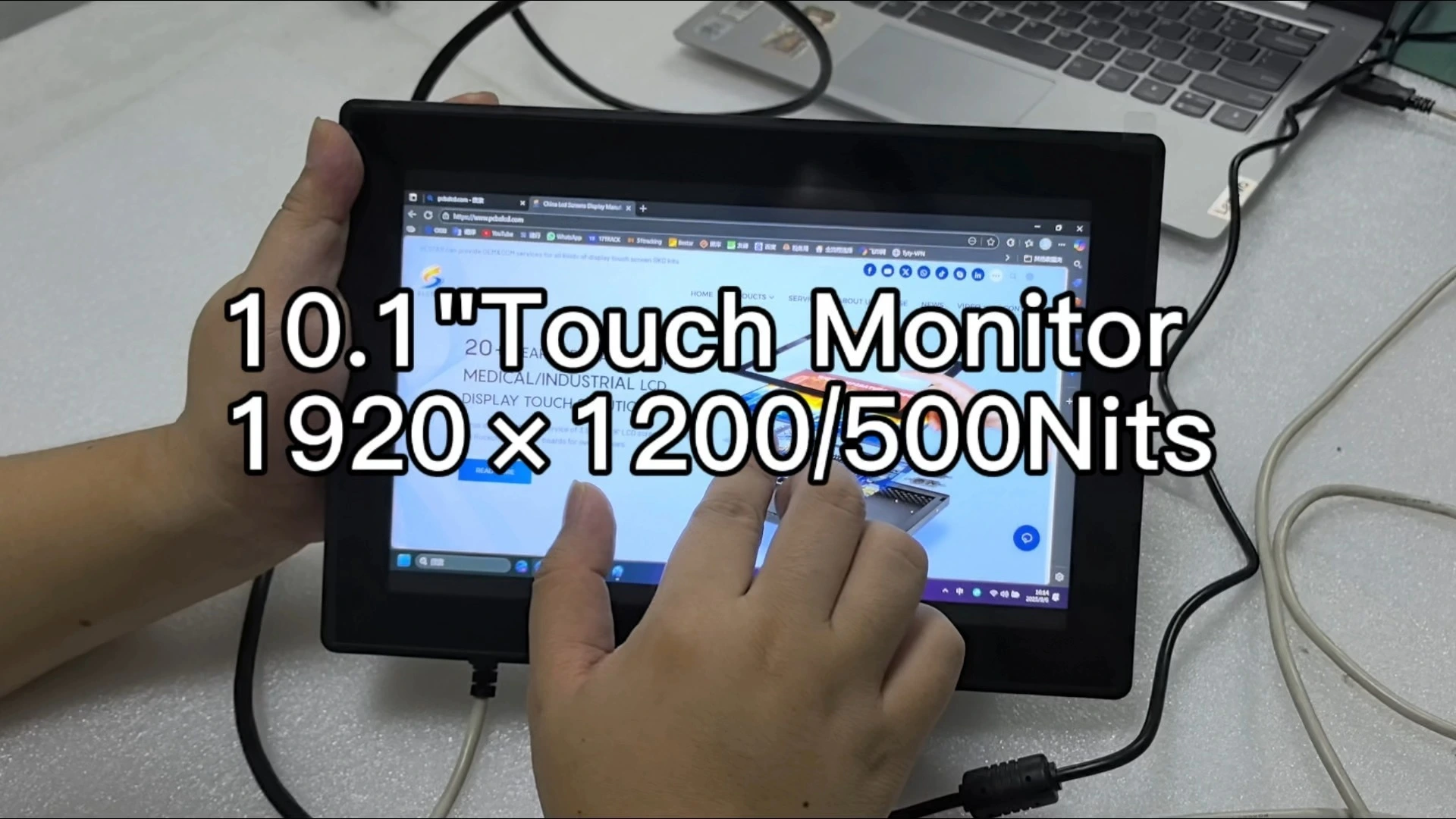

10.1" 1920*1200 touch display monitor
Meet the BSDTMN101-003AOF Embedded Touch Monitor, a sleek 10.1-inch solution optimized for integration. Its IPS display delivers crisp 1920x1200 resolution with 4096x4096 touch sensitivity, supporting finger/glove input. Engineered for harsh environments, it features a durable metal chassis, embedded-mount design, and multi-interface support (HDMI/VGA/USB). Operating silently via passive cooling, this fanless monitor ensures quiet operation in quiet spaces.
Businesses across sectors—from retail kiosks to medical carts—rely on its 10-point touch accuracy, 3-year touch lifespan, and energy efficiency (<20W). Plug-and-play functionality simplifies setup, while optional accessories (mounts, remotes) enhance versatility. Compliant with international certifications, this monitor promises hassle-free deployment for 24/7 use. Upgrade your system with a blend of elegance and resilience.
Related Parameters
|
Category |
Specifications |
|---|---|
|
Display |
10.1-inch IPS LCD, 1920x1200 (16:10), 300cd/m² brightness, 900:1 contrast, 80° viewing angles |
|
Touchscreen |
10-point capacitive, USB/RS232 interface, 4096x4096 resolution, 87% transparency, 3-year lifespan |
|
Connectivity |
HDMI, VGA, 5V USB (touch), audio input/output (optional) |
|
Power |
DC 12V-3A input, <20W active, <1W standby |
|
Durability |
Operating temp: 0–50°C, humidity: 20–80% RH; IP-rated dust/water resistance, MIL-STD-810H compliance |
|
Mounting |
VESA 75x75/100x100mm, wall/stand brackets, embedded cabinet installation |
|
Certifications |
CE/FCC/RoHS (pending client requirements) |
PRODUCT DISPLAY
Display Touch Monitor--without Operation System
Optional Interface-All-In-One Touch Monitor
Application Scenario
Why Choose This Monitor?
Maximize productivity with the BSDTMN101-003AOF: A sleek, industrial-grade 10.1-inch touchscreen built for toughness and versatility.
Frequently Asked Questions
Shenzhen Bestar Electronic Technology Co., Ltd. has been the trusted name in Medical/Industrial LCD Display touch Solutions for 20+ YEARS. Let our deep - rooted expertise drive your success!
6/F，Area D, Building A, Tengfei Industrial Building, No. 6 Taohua Road, Futian District, Shenzhen，Guangdong Province，China
