Bestar kann OEM liefern&ODM -Dienste für alle Arten von SKD -Kits für den Touchscreen für Displays

Outdoor LCD Bildschirm 15,6 Zoll BSD156FHM-N91-1000CD | Bestar 1

Outdoor LCD Bildschirm 15,6 Zoll BSD156FHM-N91-1000CD | Bestar 2

Outdoor LCD Bildschirm 15,6 Zoll BSD156FHM-N91-1000CD | Bestar

Highlight 1000nits TFT LCD Screen 1920*1080

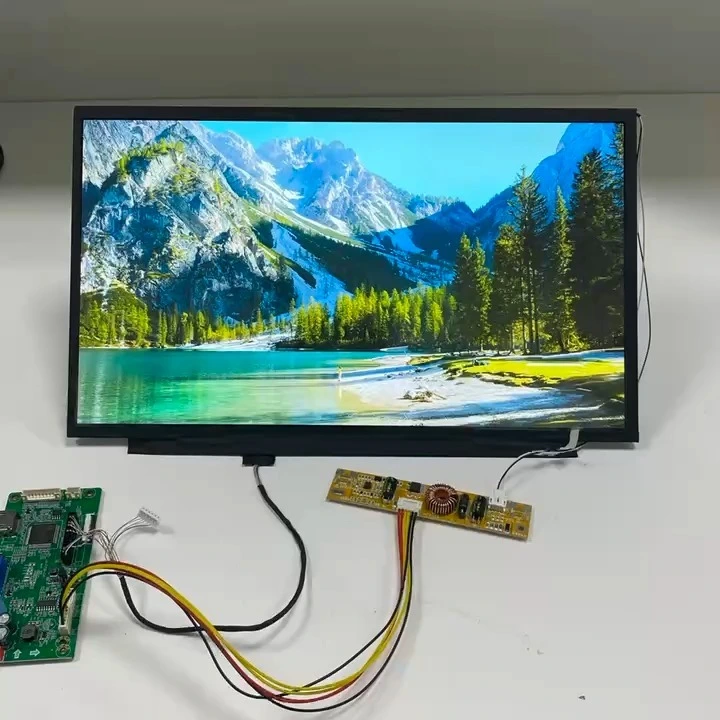

15.6-inch FHD TFT LCD module with 1920×1080 resolution, 16.7M colors, and 1000 cd/m² brightness. Featuring a 30-pin eDP interface, it supports DisplayPort standards for high-speed data transmission. Anti-glare 3H-hardened surface ensures durability and clear visibility. Integrated LED backlight (12V typ.) with PWM dimming (190Hz–2kHz) offers adjustable brightness. Operates at -20°C to +70°C, ideal for industrial and outdoor use. Low power consumption (0.89W max panel), slim design (0.87mm thickness), and robust reliability (tested for thermal shock, humidity). Compact, energy-efficient, and built for demanding applications

Bildschirmgröße:

15.6"

Herkunftsort:

Китай, Гуандун

Modellnummer:

BSD156FHM-N91-1000CD

Auflösung:

1920*1080,FHD

Liefer frist:

В рамките на 15 дни

Garantie:

1 година

Anfrage

download

BSD156FHM-N91-1000CD(包胶1000亮度）

Eine Rezension schreiben

Hoʻolauna Huahana

Shenzhen Bestar BSD156FHM-N91-1000CD

15.6" FHD (1920×1080) TFT LCD with 1000 cd/m² brightness, 1000:1 contrast, and 16.7M colors. 30-pin eDP interface; LED backlight (12V input, PWM dimming). Operates at -20°C~+70°C with anti-glare 3H-hardened surface. Ultra-slim (0.87mm panel), low power (0.89W max). Designed for industrial, medical, and outdoor displays. Reliable, compact, and high-visibility.

Inoa Huahana	15.6 TFT Outdoor Use LCD SCreen
Helu kumu hoʻohālike	BSD156FHM-N91-1000CD
Olelo Hooholo	1920(H)×1080(V) , FHD
Wahi Hana	344.16(H)*193.59(V) mm
Ka nui outline	36022.415.4 mm
ʻO ke kukui	1000 cd/m² (Typ.)
ʻO ka nānā ʻana	80/80/80/80(typ.) (CR≥10)
Hōʻike kala	16.7M(8bit ) ,72%NTSC
Manawa pane	25 (Typ.)(Tr/Td) ms
Laki like ʻole	1000:1 (Typ.)
Ka Mahana Hana	-20 ~ 70 °C
Ka Mahana Waihona	-30 ~ 80 °C
Kākoʻo hoʻopilikino	Pākuʻi paʻi, nā kelepona pale, papa AD, Papa Main, casing, ect.

hōʻike huahana

Outdoor LCD Bildschirm 15,6 Zoll BSD156FHM-N91-1000CD | Bestar 4

15.6 Inch Outdoor TFT LCD

1920x1080, FHD

Ultra-Bright 15.6" FHD Display: 1000cd/m², Industrial-Grade Clarity, Built for Demanding Environments – BESTAR

BSD156FHM-N91-1000CD

High Brightness

We can support to customize the brightness of LCD screen, function of controller boards and size of touch panels.

Outdoor LCD Bildschirm 15,6 Zoll BSD156FHM-N91-1000CD | Bestar 7

DISPLAY TOUCH PANEL KIT

Kākoʻo hoʻopilikino

faq for BSD156fhm-n91-1000cd

What interfaces does this display module support?

It uses a 30-pin eDP (Embedded DisplayPort) interface compliant with VESA eDP 1.2 standards, supporting high-speed data transmission and DisplayPort signaling.

What environmental conditions can it withstand?

Designed for industrial use, it operates at -20°C to +70°C and withstands 90% RH (non-condensing), passing thermal shock and humidity reliability tests.

Is the backlight adjustable?

Yes, the LED backlight supports PWM dimming (190Hz–2kHz, 1–100% duty cycle) via the LED_PWM signal, with input voltage range of 5–21V (12V typical).

He aha nā huahana hiki iā mākou ke hāʻawi?

Hiki iā mākou ke hāʻawi iā ʻoe i ka pale LCD, ka pā paʻi, nā kelepona pale, ka papa AD, ka papa nui a me ka nānā pono. Kākoʻo pū mākou i ka lawelawe ODM / OEM. Hiki iā mākou ke hoʻopilikino i ka lōʻihi o ka uwea pale, ka nui outline o ka pā paʻi, a me ka hana o ka papa AD e like me kāu ʻano hoʻohana.

I ka manawa hea e hiki ai iā ʻoe ke hāʻawi i nā ukana?

He huahana lapaʻau kēia a hiki ke hāʻawi pinepine ʻia i loko o 15 mau lā (ma muli o ka nui o ke kauoha).
