Development Board NanoPi R2S Plus Rockchip RK3328 Mini Router | Bestar
Mini Router Rockchip RK3328 with Metal Case

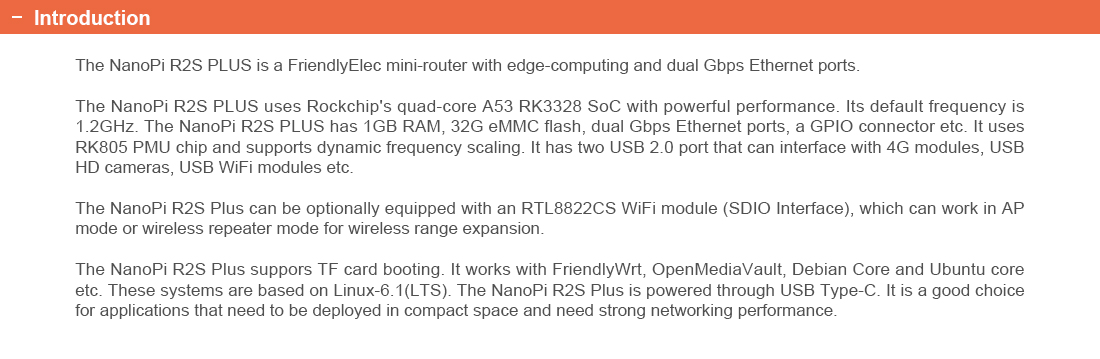

The R2S Plus is a compact, high-performance single-board computer featuring a Rockchip RK3328 Quad-Core Cortex-A53 CPU (up to 1.4GHz), 1GB DDR4 RAM, and 32GB eMMC 5.1 storage. It supports dual Gigabit Ethernet (RTL8211F and RTL8153B chips), optional M.2 SDIO Wi-Fi, and includes 2x USB 2.0 ports, USB-C power/debug interfaces, and MicroSD expansion (up to 128GB). Preloaded with Linux-based OS options like FriendlyWrt, Ubuntu, Debian, and OpenMediaVault, it suits networking, IoT, and lightweight computing. Compact dimensions (62.5x63.5x30mm, 145g with case) and 5V/2A power ensure portability. Ideal for developers and enthusiasts seeking versatile, energy-efficient solutions.
5.0
Place of origin:
China
Model number:
NanoPi R2S Plus
Delivery time:
15 days
Warranty:
12 Months
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
| CPU | Model: Rockchip RK3328 Number of Cores: Quad-Core Cortex-A53 Frequency: 4 x Cortex-A53 Up to 1.4GHz |

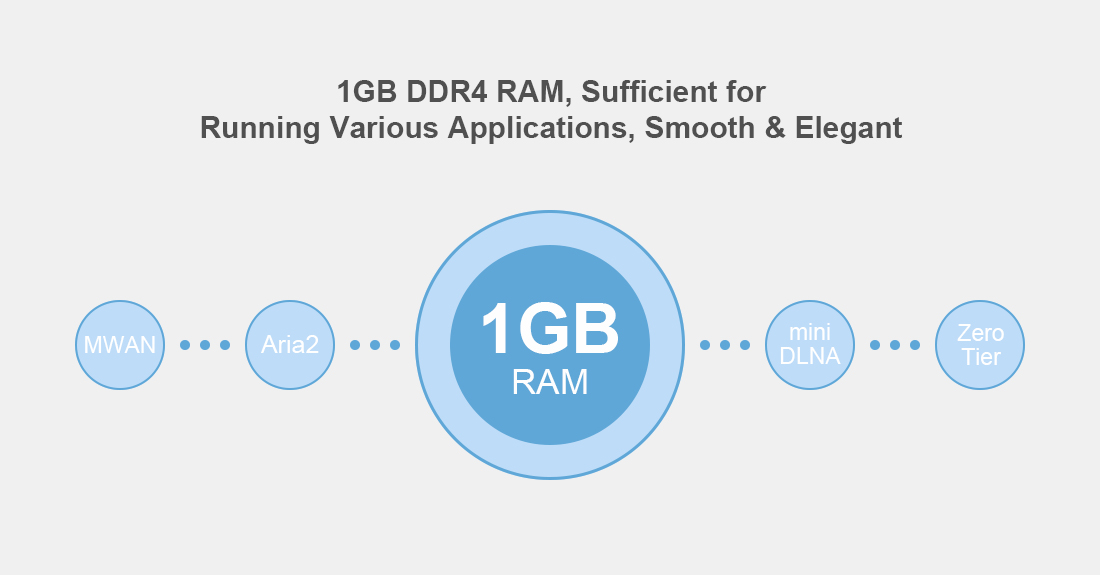

| Memory | RAM: 1GB DDR4 |
| Storage | MicroSD Slot: MicroSD x1 for external storage up to 128GB Flash: 32GB eMMC 5.1 Flash |
| Connectivity | Ethernet: 1 x Internal Gbps Ethernet x 1，RTL8211F chip
1 x USB3.0 converted Gbps Ethernet.RTL8153B chip |
| USB | 2 x USB 2.0 Host USB-C x 1:5V power input and USB update in maskrom mode USB-C x 1: onboard USB to Debug UART converter, 1500000bps bauds |
| Pin-header | Serial Debug Port x 1: 2.54mm pitch 3pin-header(3.3V TTL) |
| LED | 1 x SYS LED(Red) 1 x WAN LED(Green) 1 x LAN LED(Green) |
| Button | 1 x GPIO Button 1 x Maskrom mode Button |
| Working Temperature | 0℃ to 70℃ |
| Power | DC 5V/2A |

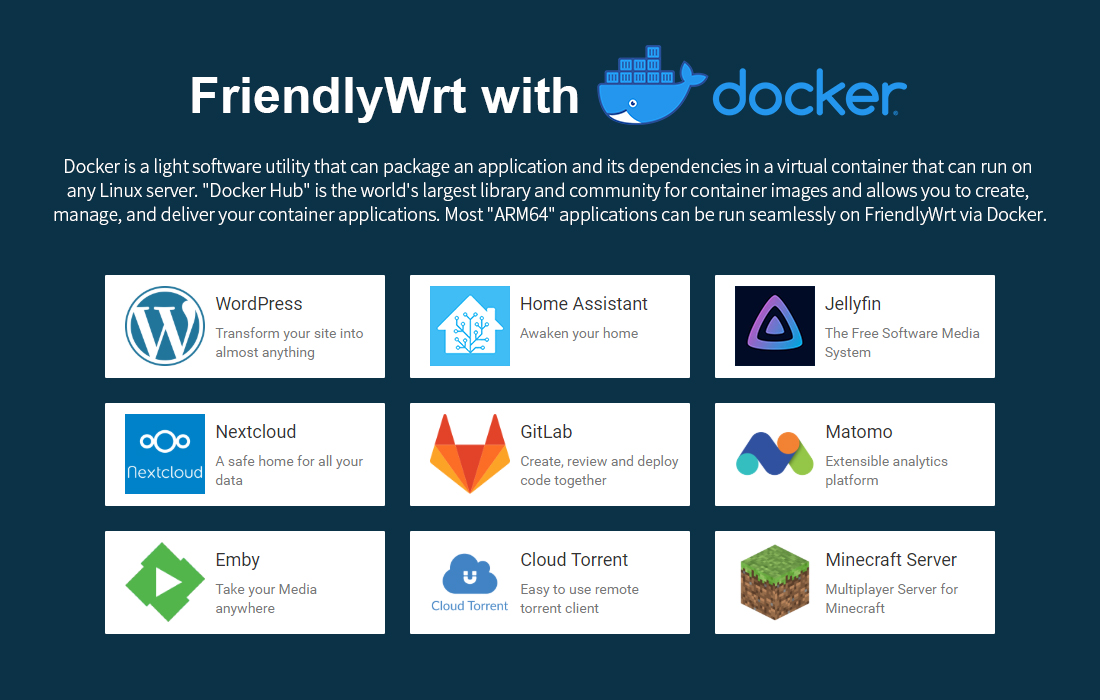

| OS Support | FriendlyWrt 21.02 FriendlyWrt 23.05 FriendlyCore Focal Lite (Base on Ubuntu 20.04) Buildroot Debian 11 Core OpenMediaVault |
| Kernel version | Linux-6.1-LTS U-boot-2017.09 |
| *The firmware is continuously updated, refer to the actual version provided by the WiKi. | |
| PCB | 6 Layer |
| Weight | 145g（With Case) |

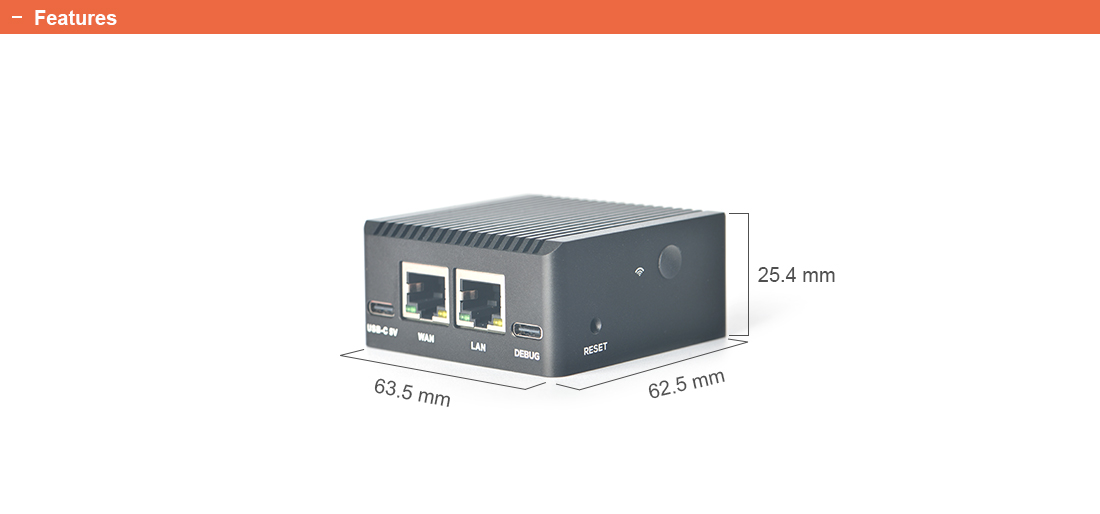

| Dimension | 62.5 x 63.5 x 30 mm(with Case) |
