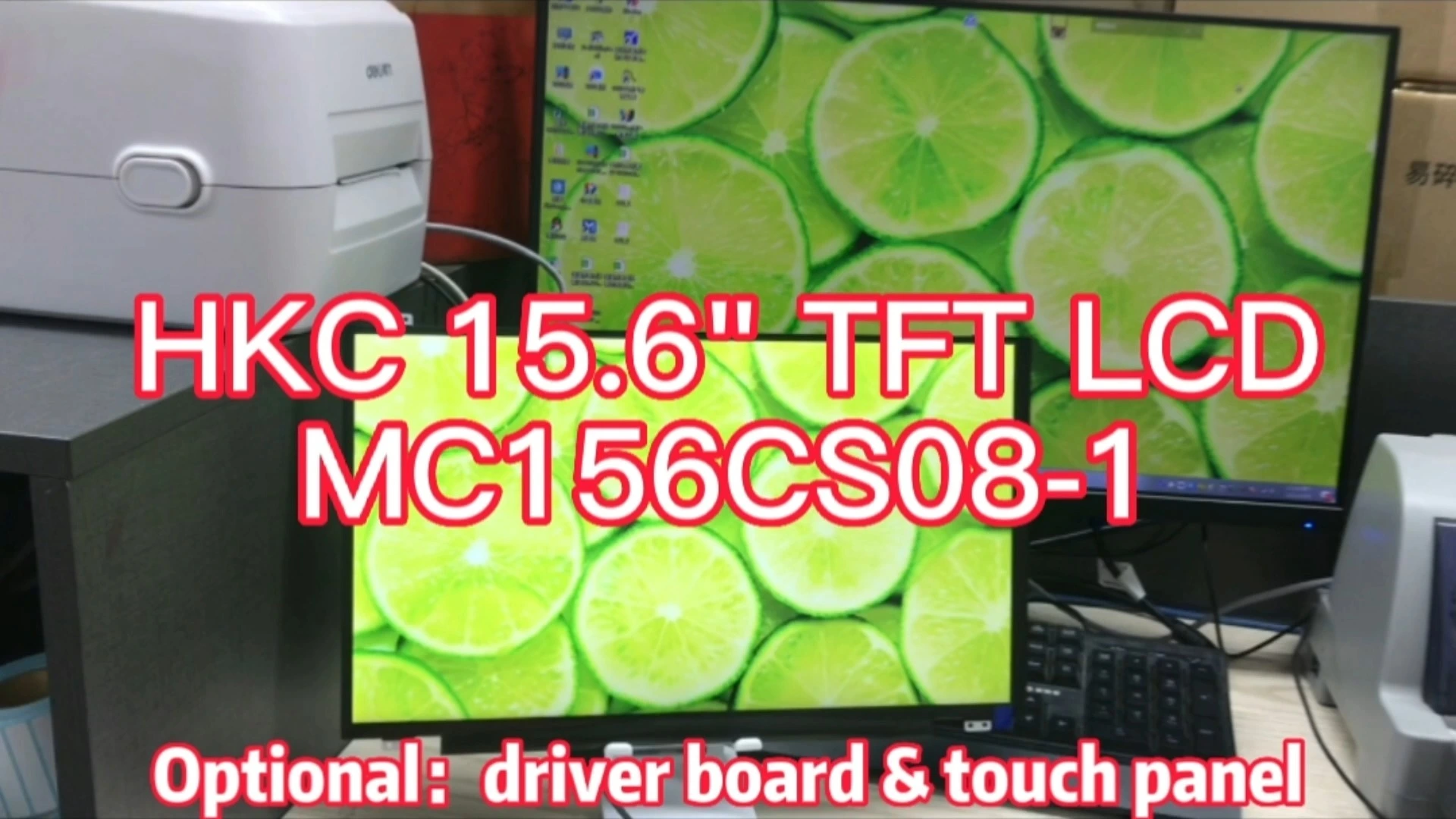

HKC 15.6 inch MC156CS08-1 FHD IPS LCD Screen Notebook PC 1

HKC 15.6 inch MC156CS08-1 FHD IPS LCD Screen Notebook PC 2

HKC 15.6 inch MC156CS08-1 FHD IPS LCD Screen Notebook PC 3

HKC 15.6 inch MC156CS08-1 FHD IPS LCD Screen Notebook PC

Display Screen 1920*1080 EDP display Anti-glare screen

The MC156CS08-1 is a high-performance 15.6-inch TFT LCD module featuring 1920×1080 (FHD) resolution with 16.7M colors (6-bit+FRC) and a 45% color gamut. Designed for efficiency, it uses a 2-lane eDP interface (2.7 Gbps) for seamless data transmission and supports low power consumption (0.75W typical) with a 3.3V driving voltage. The module boasts 300 cd/m² brightness, 800:1 contrast ratio (AG), and a wide 85° viewing angle for crisp visuals. Its RoHS-compliant, halogen-free design ensures eco-friendliness, while the integrated LED backlight (20mA forward current, 29.7V max) offers uniform illumination. With a 20ms response time and robust reliability tests (high/low temperature, humidity resistance), it’s ideal for industrial and consumer displays. The compact design (359.5×206.5×3.2mm) and RGB vertical stripe pixel arrangement enhance versatility for embedded systems, monitors, and portable devices.

Screen size:

15.6"

Place of origin:

China, Guangdong

Model number:

MC156CS08-1

Resolution:

1920*1080

Delivery time:

Within 15 days

Warranty:

1 year

Inquiry

download

MC156CS08-1_Rev

Write a Review

Product Introduction

The MC156CS08-1 LCD module delivers FHD clarity with 16.7M colors and 300 cd/m² brightness, powered by an eDP interface for high-speed data transfer. Its low-voltage operation (3.0–3.6V) and energy-efficient backlight (3.564W max) reduce power demands. The 800:1 contrast ratio and 85° viewing angles ensure vivid images from all perspectives. Built to last, it passes rigorous reliability tests (-20°C to 60°C) and features a slim 3.2mm profile. Ideal for medical displays, kiosks, and industrial HMI, this RoHS-compliant module combines performance with sustainability.

Parameter	Specification
Model	MC156CS08-1
Resolution	1920×1080 (FHD)
Color Depth	16.7M (6-bit+FRC)
Brightness	300 cd/m² (typ.)
Contrast Ratio	800:1 (AG)
Viewing Angle	85° (H/V)
Response Time	20ms (typ.)
Power Consumption	0.75W (typ.), 3.564W (LED max)
Interface	2-lane eDP (2.7 Gbps)
Dimensions	359.5×206.5×3.2mm

Application Scenario

Crisp FHD visuals, low power, and rugged reliability—MC156CS08-1 LCD module powers your next-gen displays with 16.7M colors, 300 cd/m² brightness, and eDP speed!

Notebook PCs

Primary display for ultrabooks and business laptops.

Multimedia devices:

Supports dynamic content with 30ms response time

Embedded Systems:

Reliable displays for industrial/commercial tools.

Industrial Displays:

Durable AG coating resists scratches in harsh environments.

Frequently Asked Questions

What is the operating temperature range?

20°C to 60°C (storage), 0°C to 50°C (operation).

Does it support touch functionality?

No, this is a standalone LCD module without touch.

What’s the backlight lifespan?

Lifespan depends on usage but meets standard LED longevity under 20mA current.

Is the module compatible with Raspberry Pi?

Requires an eDP-to-HDMI converter for Raspberry Pi compatibility.

How is color uniformity ensured?

75% uniformity (typ.) with 9-point luminance testing.

Can the brightness be adjusted?

Yes, via PWM control (200Hz–1kHz, 5–100% duty).
