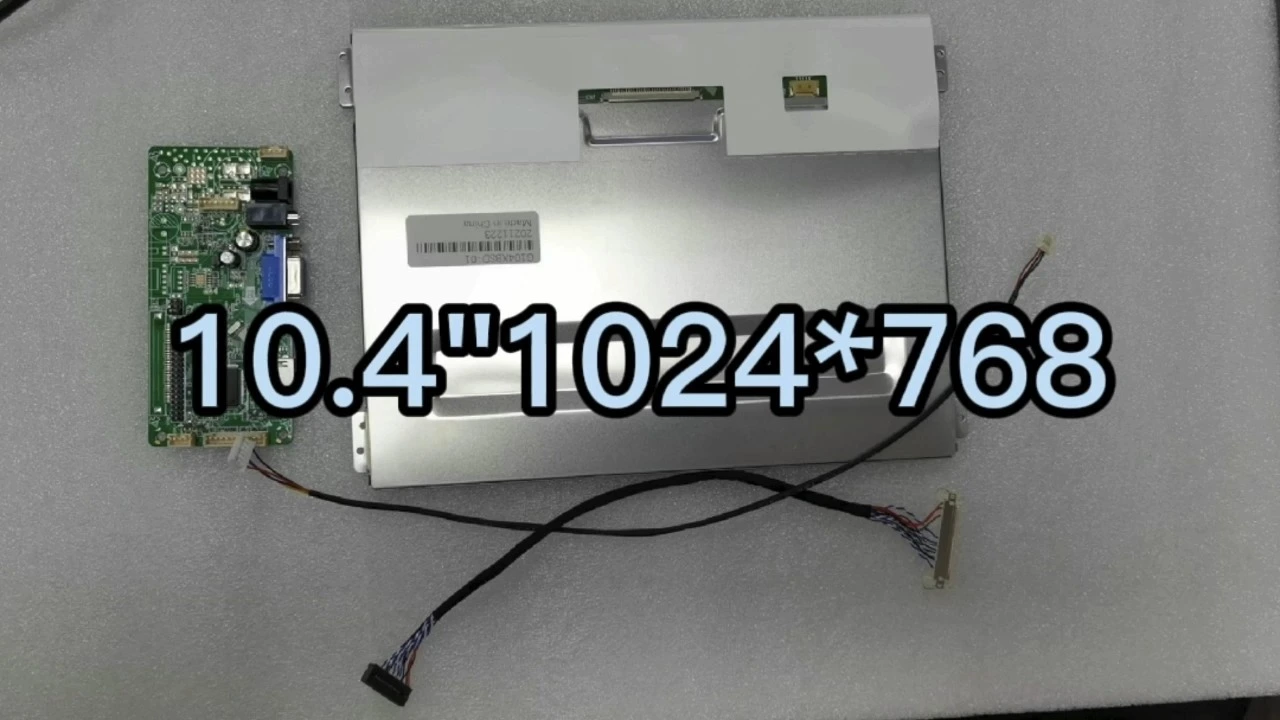

Innolux 10.4 inch Industrial LCD Screen G104XCE-L01 1024*768
10.4” TFT LCD Screen XGA IPS Display Panel Module
The G104XCE-L01 is a 10.4-inch TFT LCD module from INNOLUX, engineered for high-performance display applications. It features XGA resolution (1024x768 pixels) and supports up to 16.2 million colors, delivering sharp and vibrant visuals. With a typical brightness of 500 nits and a high contrast ratio of 1000:1, this module ensures excellent readability even in bright environments. Its fast response time (25ms total) and ultra-wide viewing angles (176 degrees horizontal and vertical) provide consistent image quality from various perspectives. The module utilizes a 30-pin LVDS interface for reliable data transmission and has a low power consumption of 7.47W typical. Designed for durability, it operates in a wide temperature range (-30°C to +85°C) and boasts an LED backlight lifespan of 50,000 hours. Ideal for industrial and monitor use, it offers robust performance, energy efficiency, and long-term reliability, making it a smart choice for demanding applications.
5.0
Screen size:
10.4 inch
Place of origin:
China
Model number:
G104XCE-L01
Resolution:
1024*768
Delivery time:
Within 15 days
Warranty:
12 months
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Product Brief
10.4" XGA 1024*768 Display Panel
The INNOLUX G104XCE-L01 is a compact 10.4-inch TFT LCD module with XGA resolution (1024x768). It displays 16.2 million colors and features 500 nits brightness, 1000:1 contrast ratio, and wide 176° viewing angles. Using an LVDS interface, it consumes only 7.47W typical power and supports industrial temperatures from -30°C to +85°C. This module is designed for reliability in applications like LCD monitors and industrial equipment, offering clear visuals and stable operation in harsh conditions.
Related Parameters
| Parameter | Value |
| Model Number | G104XCE-L01 |
| Active Area | 210.4mm (H) x 157.8mm (V) (10.4-inch diagonal) |
| Resolution | 1024 x 768 pixels (XGA) |
| Display Colors | 16,194,277 colors (6-bit with FRC) |
| Brightness (Typ.) | 500 nits |
| Contrast Ratio (Typ.) | 1000:1 |
| Response Time (Typ.) | TR=13ms, TF=12ms (Total 25ms) |
| Viewing Angle (H/V) | 176° / 176° (CR>10) |
| Interface | 30-pin LVDS |
| Power Supply Voltage | 3.3V (Typ.) |
| Power Consumption (Typ.) | 7.47W (Total: cell 1.67W, backlight 5.8W) |
| Operating Temperature | -30°C to +85°C |
| Storage Temperature | -30°C to +85°C |
| LED Backlight Lifetime | 50,000 hours (to 50% brightness) |
| Weight (Typ.) | 320g |
| Module Size (Typ.) | 225.5mm (H) x 176.3mm (V) x 8.7mm (D) |
Why Choose This Display?
Boost your display with the G104XCE-L01 10.4-inch LCD! Enjoy 500 nits clarity, wide views, and industrial toughness. Perfect for monitors and harsh environments—reliable, efficient, and built to last.
Abundant Stock, No Supply Worries
We maintain large inventory levels, ensuring stable supply with zero risk of discontinuation.
Authorized Distributor, Factory Pricing
As an authorized primary agent, we offer you the most competitive prices straight from the source factory.
Fully Customizable Display Touch Solutions
Tailor brightness levels, touchscreen aesthetics, and driver board functionality to perfectly match your requirements.
12-Month Warranty + Lifetime Support
Enjoy a 12-month warranty plus lifetime online technical assistance—your peace of mind is our priority.
Application Scenario
Industrial control panel
Medical Equipment
HMI equipment
Charging Station
Flight display
Navigation equipment
Frequently Asked Questions
1
What is the resolution of the G104XCE-L01 module?
It supports XGA resolution, which is 1024x768 pixels.
2
What is the operating temperature range for this module?
It can operate in temperatures from -30°C to +85°C, making it suitable for industrial environments.
3
How long does the LED backlight typically last?
The LED backlight has a lifetime of 50,000 hours, defined as the time until brightness drops to 50% of the original value under typical conditions.
4
What interface does this module use?
It uses a 30-pin LVDS (Low Voltage Differential Signaling) interface for data transmission.
5
What is the typical power consumption?
The total power consumption is typically 7.47W, with the cell consuming 1.67W and the backlight 5.8W.
6
Is this module suitable for outdoor use?
With its wide operating temperature range and high brightness, it can be used in varied environments, but ensure protection from direct moisture and condensation as per storage precautions.
