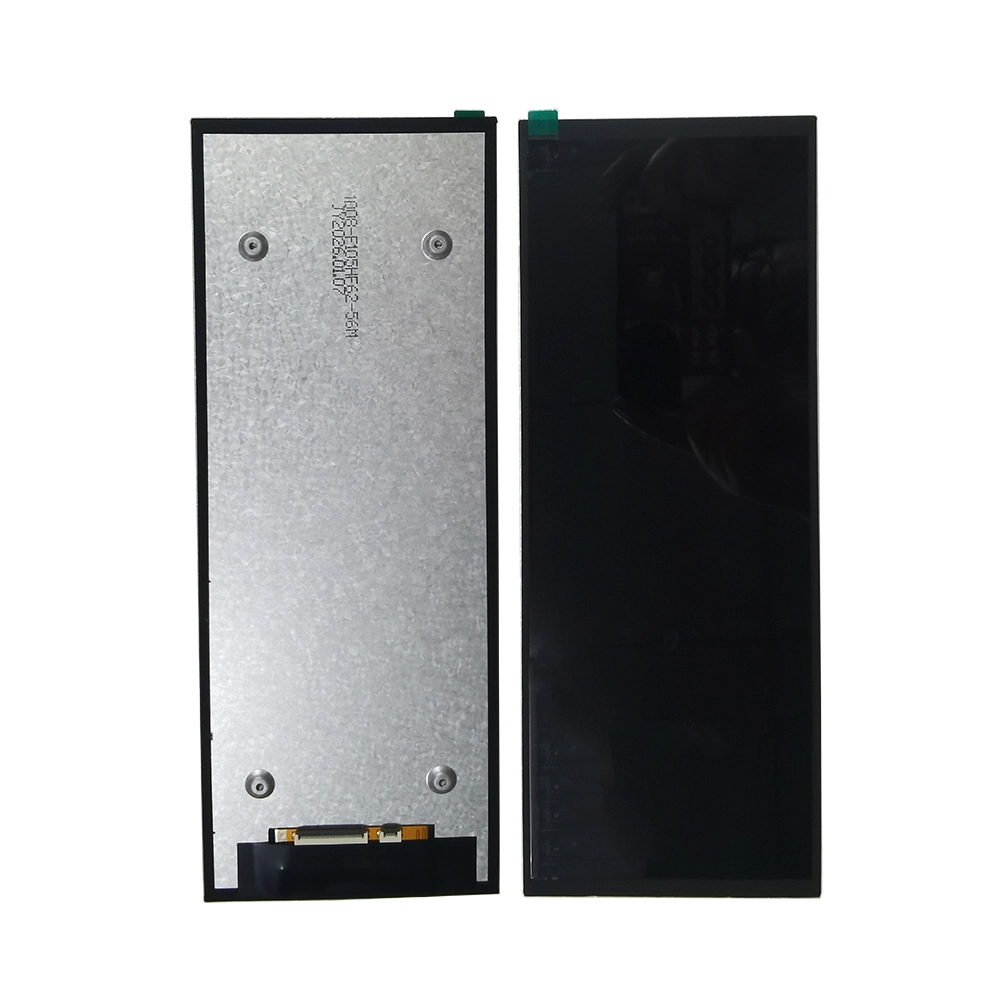

10.25 Inch Bar LCD Screen 720x1920 LCM BSD105HF62-T1.1010-56M 1

10.25 Inch Bar LCD Screen 720x1920 LCM BSD105HF62-T1.1010-56M 2

10.25 Inch Bar LCD Screen 720x1920 LCM BSD105HF62-T1.1010-56M

Ultra Wide 10.5 inch Vertical Stretched Display Panel 500Nits

The BSD105HF62-T1.1010-56M is a 10.5-inch TFT LCD display module from Shenzhen Bestar Electronic Technology Co., Ltd., featuring a high resolution of 720x1920 pixels with RGB vertical stripe arrangement. It supports 16.7 million colors through an 8-bit color depth, delivering vibrant and sharp visuals. With a typical brightness of 550 cd/m² and a contrast ratio of 1000:1, it ensures clear visibility in various lighting conditions. The module incorporates an In-Cell touch panel with 16x45 channels for responsive interaction and uses a 4-lane MIPI interface for efficient data transmission. Key advantages include low power consumption, a wide viewing angle of 85° horizontally and vertically, and a long-lasting LED backlight with a lifespan of 20,000 hours. Designed for reliability, it operates in temperatures from -20°C to 70°C, is ROHS compliant, and has a compact outline of 101.27x261.15x7.0 mm. Ideal for applications demanding high-quality displays with touch functionality, this module offers durability and excellent performance.

Screen size:

10.25"

Place of origin:

Guangdong, China

Model number:

BSD105HF62-T1.1010-56M

Resolution:

720*1920

Delivery time:

Within 15 days

Warranty:

12 Months

Inquiry

download

10.25 inch LCD Screen Specs_BSD105HF62-T1.1010-56M

Write a Review

Product Brief

10.25-inch TFT LCD display module

This 10.25-inch LCD module boasts a 720x1920 resolution and 16.7M color display, providing crisp images with a typical brightness of 550 cd/m². It features an In-Cell touch screen for seamless interaction and a 4-lane MIPI interface for fast connectivity. With a response time of 25 ms and wide viewing angles, it ensures consistent performance. The module is built to withstand temperatures from -20°C to 70°C and has an energy-efficient design. Its robust construction and ROHS compliance make it suitable for various electronic devices requiring reliable visual output.

Related Parameters

Parameter	Specification
Model No.	BSD105HF62-T1.1010-56M
Panel Size	10.25 inches
Resolution	720 x 1920 pixels
Active Area	91.368 mm (W) x 243.648 mm (H)
Outline Dimension	101.27 mm (H) x 261.15 mm (V) x 7.0 mm (D)
Number of Colors	16.7M colors (8-bit)
Display Mode	Normally Black
Viewing Direction	85° horizontal, 85° vertical
Interface	4-lane MIPI
Touch Interface	In-Cell, 16x45 channels
Typical Luminance (Center)	550 cd/m² (Typical)
Contrast Ratio (Typ.)	1000:1 (Typical)
Response Time (Typ.)	25 ms (Typical)
Operation Temperature	-20°C to +70°C
Storage Temperature	-30°C to +80°C
LED Life-Time	20,000 hours
Power Supply Voltage	IOVCC: 1.8V Typ., VCI: 3.3V Typ.
Driver IC	JD9366TC

Why Choose This Display?

Discover crisp 720x1920 resolution and vibrant colors with our 10.5-inch In-Cell touch display. Featuring low power consumption, wide viewing angles, and a durable LED backlight—perfect for reliable performance in any environment.
