12.1 inch GV121FHM-N10 TFT LCD Screen Display Module 1920*1080
12.1”Screen Module 16:9 EDP 30Pins LCM Module
The GV121FHM-N10 is a 11.9-inch Full-HD (1920x1080) color active matrix TFT LCD module designed for notebook PCs. It features 16.7 million colors, low reflection, and high brightness, ensuring clear and vibrant visuals. With a 2.7Gbps eDP interface and low power consumption, it offers efficient performance. The built-in LED backlight ensures even illumination, while the anti-glare surface enhances readability. This module is ideal for those seeking a reliable and high-quality display solution.
5.0
Screen size:
10.4"
Place of origin:
China, Guangdong
Model number:
GV104X0M-N10
Resolution:
1024*768
Delivery time:
Within 20 days
Warranty:
1 year
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Product Introduction
The GV104X0M-N10 is a high-performance 10.4" LCD module with XGA resolution, 16.7M colors, and 400-450 cd/m² brightness. Engineered for automotive use, it combines wide viewing angles, fast response, and RoHS compliance. Key features include a 50,000-hour LED backlight, ultra-slim profile (10.5mm), and proven durability across -30~85°C.
| Parameter | Specification | Unit |
|---|---|---|
| Model | GV121FHM-N10 | - |

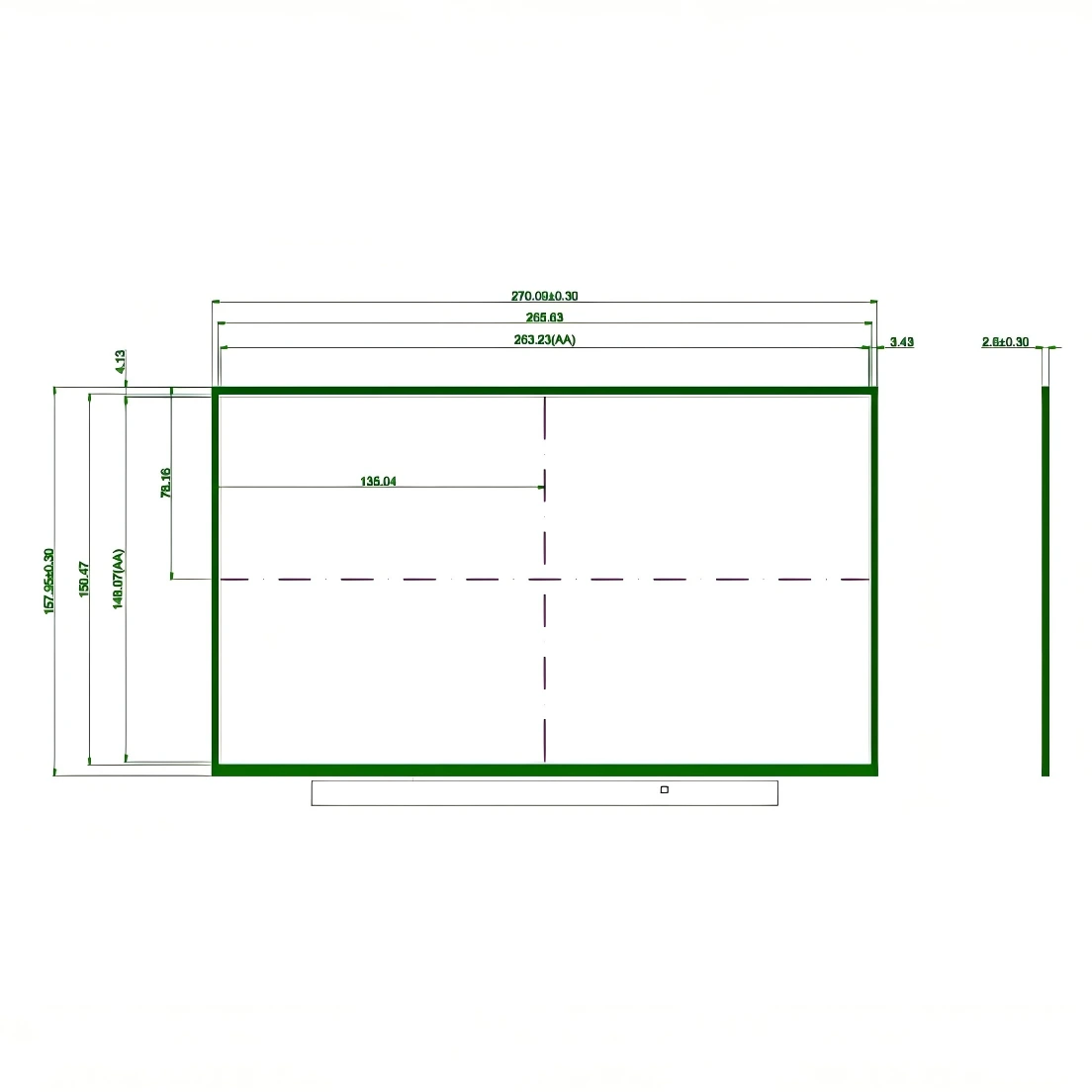

| Active Area | 263.232(H)x148.068(V) | mm |
| Resolution | 1920x1080 | pixels |
| Pixel Pitch | 45.7(H)x137.1(V) | um |
| Display Colors | 16.7M (6bit+2FRC) | - |
| Viewing Angle | 80/85 (H), 80/85 (V) | Deg. |
| Brightness | 200-230 cd/m² | cd/m² |
| Power Consumption | 0.66-3.18 W @White, Total | W |
| Response Time | 25-35 ms | ms |
| LED Lifetime | 15,000 Hours IF=20mA | Hours |
| Interface | eDP1.2 | - |
Application Scenario
Discover the clarity of GV121FHM-N10, your perfect Full-HD display with vibrant colors and low power consumption. Ideal for notebooks!
Industrial Automation
Control panels, machinery interfaces, and monitoring systems in industrial settings, engineered for temperature resilience (-10°C to +55°C) and vibration/shock resistance.
Medical Devices
Patient monitors, diagnostic equipment, and laboratory instruments, benefiting from high contrast (1000:1), anti-glare coatings, and compliance with hygiene standards.
Retail & POS Systems
Point-of-sale terminals, self-checkout kiosks, and digital signage in stores, restaurants, or hotels, supported by 16.7M colors and 50,000-hour LED backlight lifespan.
Transportation
Airports, train stations, and automotive displays, engineered for stable operation in fluctuating temperatures and humidity (10–90% RH).
Outdoor/Government Applications
Ticketing machines, information displays, and control centers, thanks to IP65-rated dust resistance and RoHS/Halogen-free compliance.
Education & Public Spaces
Interactive whiteboards, digital classrooms, and museums, leveraging its scratch-resistant 3H polarizer and wide viewing angles (85° horizontal/vertical).
faq
1
What is the resolution of the GV121FHM-N10?
The GV121FHM-N10 has a Full-HD resolution of 1920x1080 pixels.
2
How many colors can the GV121FHM-N10 display?
It can display up to 16.7 million colors.
3
What is the brightness range of the GV121FHM-N10?
The brightness ranges from 200 to 230 cd/m².
4
What type of interface does the GV121FHM-N10 use?
It uses a 2.7Gbps eDP1.2 interface.
5
How long is the LED backlight lifetime?
The LED backlight has a lifetime of 15,000 hours.
6
What is the viewing angle of the GV121FHM-N10?
The viewing angle is 80/85 degrees horizontally and vertically.
