BESTAR can provide OEM&ODM services for all kinds of display touch screen SKD kits

Customized 8.8 inch 1600*2500 In-cell Touch Display Ultra HD IPS-LCD Module

IPS TFT LCD Screen 1600×2560 pixels 400 cd/m² MIPI interface RoHS

The BSD088MN15196P61-32D01-01Y-B is a high-performance IPS-LCD module featuring a 1600×2560 resolution and 16.7 million colors, delivering sharp and vibrant visuals. With a typical brightness of 400 cd/m² and a contrast ratio of 1500:1, it ensures excellent visibility in various lighting conditions. The module utilizes MIPI interface for seamless connectivity and operates with a response time of 25ms (max), ideal for dynamic content. Its amorphous silicon TFT technology guarantees wide viewing angles (80° horizontal/vertical) and consistent color accuracy. Designed for durability, it boasts a 50,000-hour MTBF and complies with RoHS environmental standards. The integrated LED backlight (24V, 90mA) offers uniform illumination with 85% brightness uniformity. Perfect for industrial, medical, and high-end consumer applications, this module combines reliability, energy efficiency, and superior optical performance.

Screen size:

8.8"

Place of origin:

China, Guangdong

Model number:

BSD088MN15196P61-32D01-01Y-B

Resolution:

1600(RGB)×2560

Delivery time:

Within 30 days

Warranty:

1 year

Inquiry

download

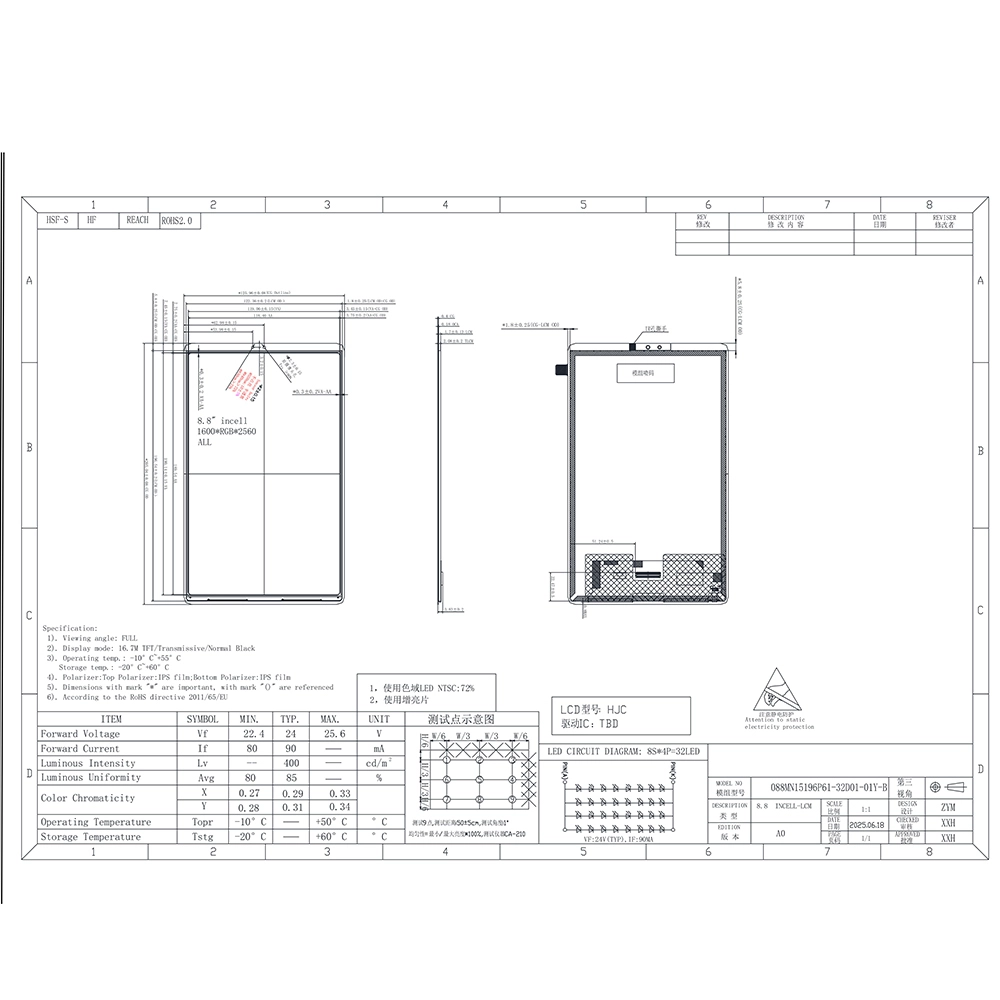

8.8 inch-MIPI-1600×2560 resolution-BSD088MN15196P61-32D01-01Y-B

Write a Review

Product Introduction

The BSD088MN15196P61-32D01-01Y-B is a color IPS-LCD module with 1600×2560 pixels, supporting MIPI interface and normally black display mode. It features 400 cd/m² luminance, 1500:1 contrast ratio, and a 17ms typical response time. The module’s 32-chip LED backlight ensures stable performance with 80–90mA forward current. Its wide viewing angles (80°) and 85% luminance uniformity make it suitable for precision displays. Compliant with ESD and thermal shock standards, it offers a 12-month warranty and 50,000-hour lifespan. Ideal for applications demanding high resolution and color fidelity.

Parameter	Specification
Model	BSD088MN15196P61-32D01-01Y-B
Resolution	1600(RGB)×2560
Display Mode	Normally Black
Interface	MIPI
Luminance	400 cd/m² (typ)
Contrast Ratio	1500:1 (typ)
Response Time	25ms (max)
Viewing Angle	80° (H/V, CR>10)
Backlight	32-chip LED, 24V/90mA
MTBF	50,000 hours
Operating Temperature	-10°C to +50°C

Application Scenario

Ultra HD IPS-LCD Module – 1600×2560 Resolution, 400 cd/m² Brightness, 1500:1 Contrast Ratio. MIPI Interface, RoHS Certified. Perfect for Precision Displays!

Industrial Automation

Why? 50,000-hour MTBF and -10°C to +50°C operating range suit harsh factory conditions. Interface: MIPI connectivity integrates seamlessly with PLCs and HMI panels.

Medical Devices

Why? The 400 cd/m² brightness and 1500:1 contrast ratio ensure clear visibility of medical scans (X-rays, MRIs) under varying lighting. Compliance: Meets ESD and thermal shock standards (IEC61000-4-2, GB/T17626.2), critical for sterile environments.

Professional Monitors & High-End Displays

Why? IPS technology delivers consistent colors at 85% luminance uniformity, ideal for graphic design and video editing. Response Time: 25ms (max) minimizes motion blur for dynamic content.

Aerospace & Defense

Why? RoHS compliance and low power consumption (LED backlight at 24V/90mA) align with avionics’ stringent requirements.

Automotive Dashboards & Navigation

Why? Wide viewing angles prevent distortion for drivers/passengers. Durability: Passes thermal shock tests (-20°C to 60°C cycles), ensuring reliability in vehicles.

Frequently Asked Questions

What is the lifespan of this LCD module?

The module has a minimum MTBF of 50,000 hours under normal operating conditions (25°C).

Does it support touch functionality?

The module includes TP_I2C and TP_RESET pins for optional touch panel integration (1.8V signal).

What is the power consumption of the backlight?

The LED backlight operates at 24V with 80–90mA forward current, ensuring energy efficiency.

Is this module RoHS compliant?

Yes, it adheres to RoHS environmental standards.

What are the viewing angle specifications?

80° horizontal/vertical with a contrast ratio >10, ensuring consistent visibility from wide angles.

How is brightness uniformity ensured?

The module achieves **≥85% luminance uniformity** across 9 measurement points.
