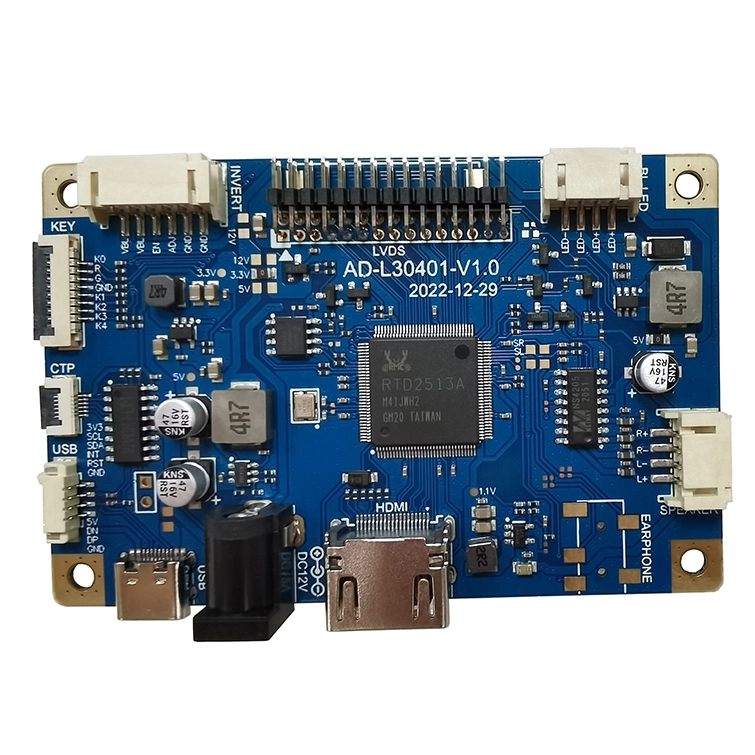

HDMI To LVDS AD Board L30401 For BSD101WUM-N80-500CD LCD Screen 1

HDMI To LVDS AD Board L30401 For BSD101WUM-N80-500CD LCD Screen 2

HDMI To LVDS AD Board L30401 For BSD101WUM-N80-500CD LCD Screen 3

HDMI To LVDS AD Board L30401 For BSD101WUM-N80-500CD LCD Screen 4

HDMI To LVDS AD Board L30401 For BSD101WUM-N80-500CD LCD Screen 5

HDMI To LVDS AD Board L30401 For BSD101WUM-N80-500CD LCD Screen

The AD-L30401 is a versatile HDMI to LVDS adapter board designed for seamless integration with LVDS interface LCD panels. Supporting HDMI 1.4a input via Type-A or Type-C connectors, it delivers high-resolution displays up to 1920×1200@60Hz with 24-bit color depth. Key features include flexible power options (5V/12V via USB-C or DC-005), optional LED backlight driver (up to 800mA), and expandable functionalities like a 5-key OSD menu, I²C port for touchscreens, and 3W speaker amplifier. Engineered for reliability, it operates within 0°C–70°C and supports panel voltages of 3.3V, 5V, or 12V. With its compact design (57×87mm) and robust connectivity (HDMI, LVDS 30/40-pin, USB, audio jacks), this board is ideal for industrial monitors, medical displays, and embedded systems requiring stable performance and scalability.

Screen size:

8-55 inch

Place of origin:

China, Guangdong

Model number:

AD-L30401

Resolution:

800*480~1920*1200@60Hz

Delivery time:

In Stock

Warranty:

1 year

Inquiry

download

百升达-LVDS驱动板 Spec (2)

Write a Review

Product Brief

HDMI to LVDS AD board

The AD-L30401 HDMI-to-LVDS board enables high-resolution video transmission from HDMI sources to LVDS displays. Key specifications include HDMI 1.4a input, dual-port 8-bit LVDS output, and compatibility with resolutions up to 1920×1200@60Hz. It offers adaptable power inputs (5V/12V USB-C/DC), optional LED backlight control, and integrated audio support (3.5mm jack, 3W amplifier). Designed for industrial environments, it withstands temperatures from 0°C to 70°C and allows customization via I²C touch interfaces and OSD menus. Its modular design simplifies integration into monitors, signage, and medical devices, ensuring reliable performance with minimal setup.

Related Parameters

HDMI to LVDS AD Board (AD-L30401) Product Overview

Feature	Specification
Input Interface	HDMI 1.4a (Type-A/C)
Output Interface	2-port 8-bit LVDS (30/40-pin connector)
Resolution Support	Up to 1920×1200@60Hz
Power Input	5V (USB-C) / 12V (DC-005)
Backlight Driver	400mA (adjustable via PWM)
Audio Support	3.5mm headphone jack, 3W amplifier
Operating Temp	0°C–70°C
Power Supply	12V DC or 5V USB-C
Dimensions	57mm × 87mm × 12.3mm

Value Proposition: Ideal for display solutions requiring HDMI-to-LVDS conversion with flexible power, panel compatibility, and expandable interfaces. Compact and energy-efficient for embedded or commercial displays.

Why Choose This Display?

Connect HDMI to LVDS displays effortlessly! The AD-L30401 adapter delivers crisp 1920×1200 visuals, flexible power options, and multimedia integrations. Ideal for industrial monitors, signage, and more. Streamline your setup today!

HDMI To LVDS AD Board L30401 For BSD101WUM-N80-500CD LCD Screen 7

Abundant Stock, No Supply Worries

We maintain large inventory levels, ensuring stable supply with zero risk of discontinuation.

HDMI To LVDS AD Board L30401 For BSD101WUM-N80-500CD LCD Screen 8

Authorized Distributor, Factory Pricing

As an authorized primary agent, we offer you the most competitive prices straight from the source factory.

Fully Customizable Display Touch Solutions

Tailor brightness levels, touchscreen aesthetics, and driver board functionality to perfectly match your requirements.

OptionalAC&DCTypeIISPD&SPDfailurealarm-282

12-Month Warranty + Lifetime Support

Enjoy a 12-month warranty plus lifetime online technical assistance—your peace of mind is our priority.

FAQs for HDMI to LVDS AD Board (AD-L30402)

What products can we provide?

We can provide you LCD screen, touch panel, screen cables, AD board, mainboard and customized monitor. We also support ODM/OEM service. We can customize the lengh of screen cable, outline size of touch panel, and functin of the AD board according to your usage scenario.

Does the AD-L30401 support audio?

Yes, it includes a 3.5mm headphone jack and 3W amplifier.

What power options are available?

5V via USB-C or 12V via DC-005; accepts 4.5–13.5V input range.

Can I adjust backlight brightness?

Yes, via PWM signal (0–100% duty cycle) or external invert control.

Is touch functionality supported?

Yes, with an optional I²C touch connector (3.3V output).

What is the maximum cable length for LVDS?

Up to 10 meters (depending on cable quality and resolution).

How does thermal management work?

Operates safely at 0°C–70°C; passive cooling recommended for prolonged use.
