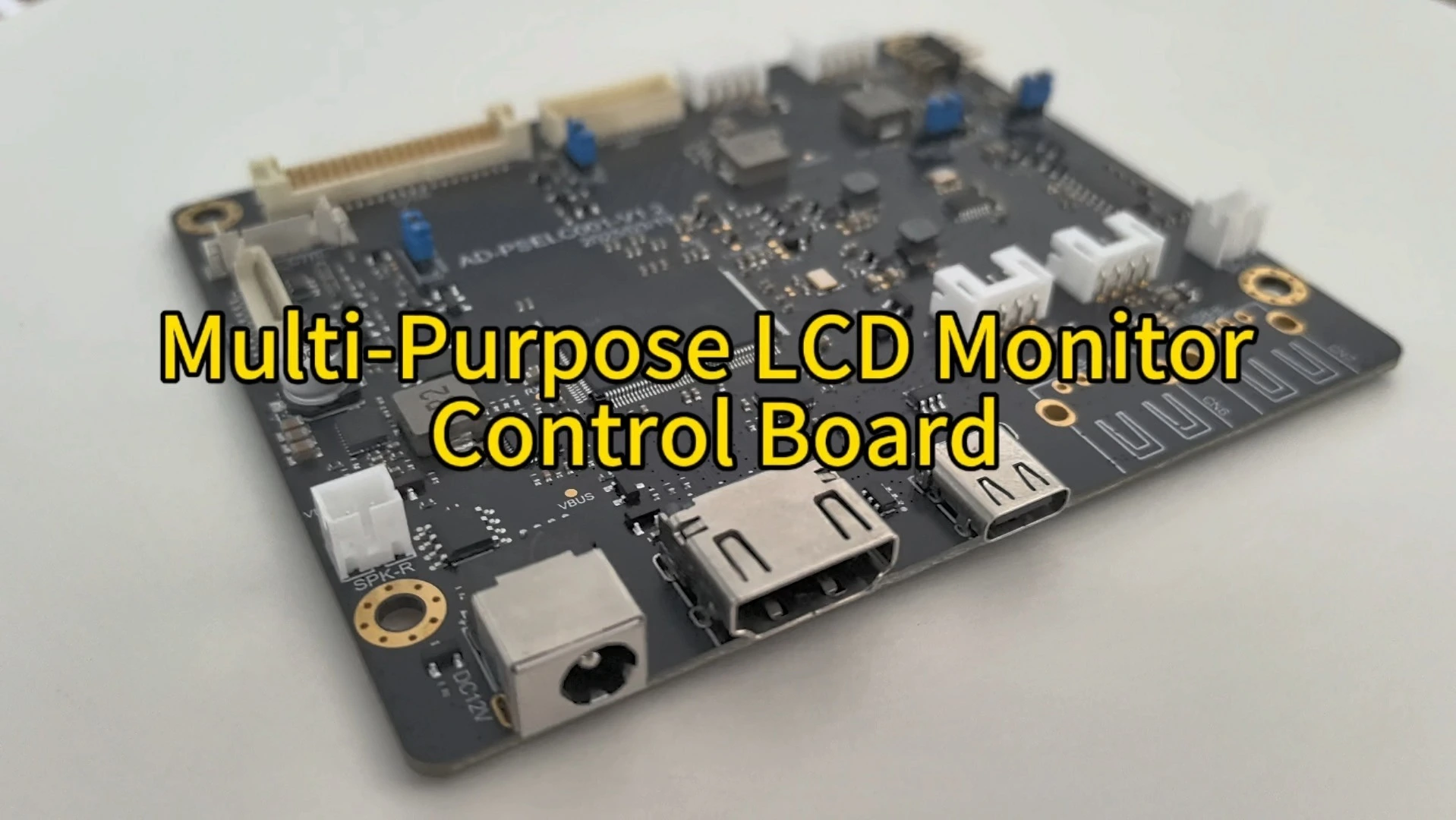

Name: Multi-Purpose LCD Monitor Control Board AD-PSELC001-V1.2 LCD driver board
Uploaded: 2026-01-27T14:38:56+08:00
Description: Product Brief AD-PSELC001-V1.2 Multi-Purpose LED Monitor Control Board The AD-PSELC001-V1.2 LCD driver board offers seamless connectivity via HDMI, TYPE-C, and PD power inputs. With support for resolutions up to 2560x1600@60Hz, it caters to high-defi

The AD-PSELC001-V1.2 Multi-Purpose LCD Monitor Control Board features a versatile design compatible with global standards. Supporting up to 2560x1600@60Hz resolution with 16.7 million colors, this board ensures vibrant visuals and sharp details. Equipped with an RTD2556-CG chipset, it enables low-power consumption (standby ≤0.25W) and high brightness for optimal performance. Key interfaces include HDMI, TYPE-C (with PD 3.0 fast charging), and dual LVDS/EDP panel inputs, accommodating various display devices. The board also supports 2x2W audio output, OSD language options (Chinese, English, French, etc.), and advanced safety certifications (UL/IEC). Designed for commercial, educational, and industrial applications, its plug-and-play functionality simplifies integration while ensuring durability in diverse environments.

Inquiry

Write a Review

Product Brief

AD-PSELC001-V1.2 Multi-Purpose LED Monitor Control Board

The AD-PSELC001-V1.2 LCD driver board offers seamless connectivity via HDMI, TYPE-C, and PD power inputs. With support for resolutions up to 2560x1600@60Hz, it caters to high-definition displays. Its dual LVDS/EDP interfaces and Type-C reversible connectivity make it ideal for versatile setups. The onboard RTD2556-CG chipset ensures energy efficiency (0.25W standby) and stable performance. Additional features include audio output, customizable OSD languages, and compliance with international safety standards. Engineered for global markets, this board streamlines installation and enhances productivity across industries.

Related Parameters

Parameter	Value
Model	AD-PSELC001-V1.2
Maximum Resolution	2560x1600@60Hz
Supported Interfaces	HDMI, TYPE-C, LVDS, EDP
Power Input	5V/9V/12V (PD), 12V (DC)
Audio Output	2x2W @ 3Ω
Operating Temperature	0–40°C
Compliance Standards	UL60950/EN60950, IEC60065
