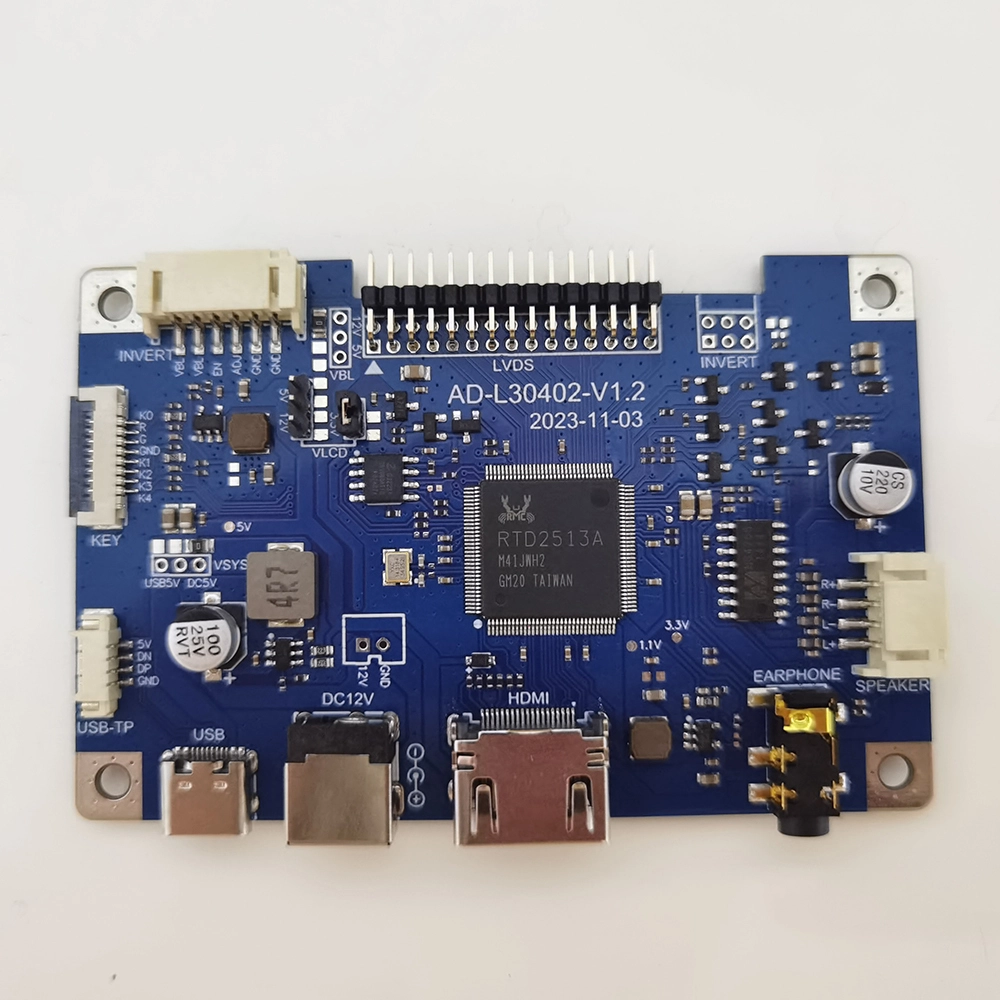

HDMI To LVDS Driver Board AD-L30402 Full Fuction Circuit Board
Product Brief
HDMI to LVDS AD board
The AD-L30402 adapter board converts HDMI signals to LVDS for LCD displays, supporting maximum resolutions of 1920x1200@60Hz. It offers optional 5V or 12V power inputs, backlight control, and audio amplification capabilities. With a compact design and operating temperature range of 0°C to 70°C, it is ideal for monitor and terminal applications, delivering efficient video conversion without complex setup.
Related Parameters
HDMI to LVDS AD Board (AD-L30402) Product Overview
| Category | Description |
|---|---|
| Core Function | Converts HDMI 1.4a signals to dual-port 8-bit LVDS output for LCD panels. |
| Key Features | - Supports 1920×1200@60Hz resolution. - 12V/5V power input options. - Optional LED backlight driver, touch interface (I2C/USB), and audio amplifier. |
| Advantages | - High compatibility: 3.3V/5V/12V panel voltage selection. - Compact design (57×87×12.3mm). - Low power consumption (1.25W max). |
| Applications | Monitors, display terminals, industrial control systems, embedded displays. |
| Input Interface | HDMI 1.4a (Type A/C) |
| Output Interface | 2×8-bit LVDS (30/40-pin FPC) |
| Max Resolution | 1920×1200@60Hz |
| Power Supply | 12V DC or 5V USB-C |
| Panel Voltage | Selectable 3.3V/5V/12V (±5% tolerance) |
| Operating Temp. | 0°C to 70°C |
| Optional Features | Backlight control, touch I2C/USB, 3W speaker, headphone jack, OSD keypad. |
Value Proposition: Ideal for display solutions requiring HDMI-to-LVDS conversion with flexible power, panel compatibility, and expandable interfaces. Compact and energy-efficient for embedded or commercial displays.
product display
Remarks: When shipping this baseboard, we will configure and ship it with different components according to customer requirements to meet their specific needs.
Images are for reference only, the actual product and its functional parameters must be confirmed with customer service.
